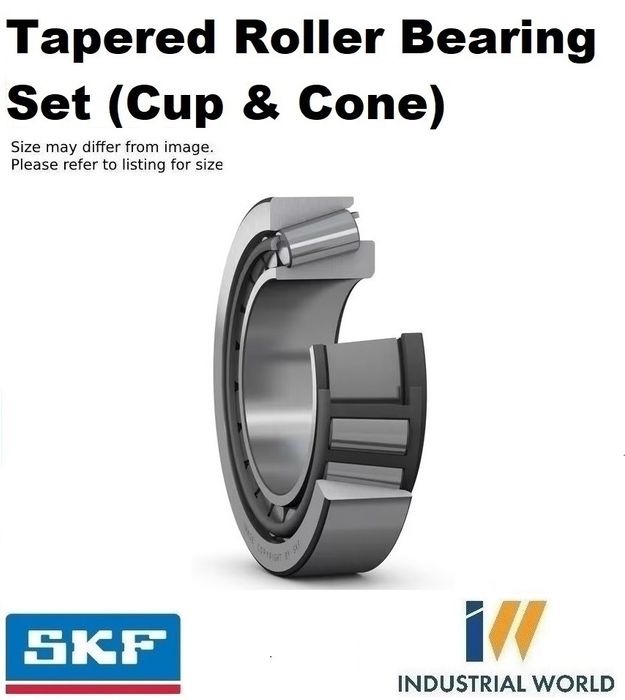

SKF - Metric Tapered Roller Bearing Set

100 x 180 x 49 mm (Cup & Cone Set)
Stock Code:
32220_SKF
$321.29 incl GST

Stock Locations

  • Ballarat:
    6 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

32220

SKF - Metric Tapered Roller Bearing Set
100 x 180 x 49 mm (Cup & Cone Set)

A basic Tapered Roller bearing consists of two components - an internally angled raceway (Cup), and an externally angled inner ring with cage and rollers (Cone). Tapered roller bearings are designed to accommodate combined radial and axial loads simultaneously. The axial load carrying capacity of tapered roller bearings increases with the increasing geometric contact angle.

Tapered Roller bearings are also available as Assembly units that can facilitate Face to Face or Back to Back mounting with the inclusion of Double Cups or Double Cones, used in conjunction with machined spacers to provide correct bearing preload and Bench End Play (BEP). Tapered Roller bearings are available as single row, double row and multi (four row) designs.

Typical Applications:
• Pumps
• Mill Chocks
• Heavy machinery
• Truck and Passenger vehicles.

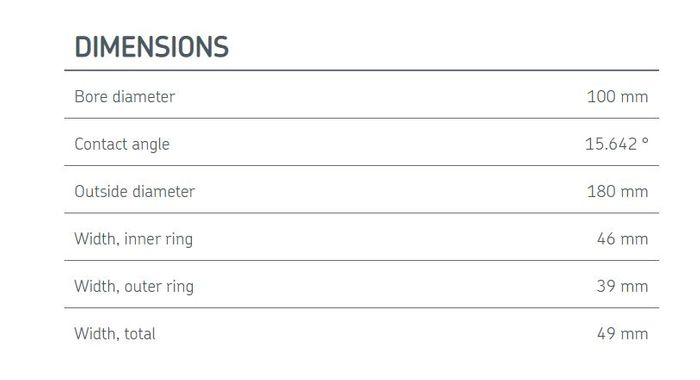

Dimensions

Bore diameter100 mm
Outside diameter180 mm
Width, total49 mm
Width, inner ring46 mm
Width, outer ring39 mm
Contact angle15.642 °

Performance

Basic dynamic load rating390 kN
Basic static load rating440 kN
Reference speed3 000 r/min
Limiting speed3 600 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Arrangement of contact angle (double-row bearing)Not applicable
Matched arrangementNo
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Unit systemMetric
Indicative carbon footprint for new product17.7 kg CO2e

Logistics

Product net weight4.91 kg
eClass code23-05-09-10
UNSPSC code31171516

The link below is for the SKF Product table, where you can input dimensions and find the right bearing for you.

Click here for catalogue information

Click here for SKF product table

Click here for SKF Tapered roller bearings guide

Click here for SKF Tapered roller bearings product listing (Metric & Inch)

Click here for tapered roller bearing metric guide chart


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    100 mm
  • Material:
    Chrome Steel
  • Width:
    49 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    322
  • Type:
    Set (Cup & Cone)
  • Diameter Outside:
    180 mm
