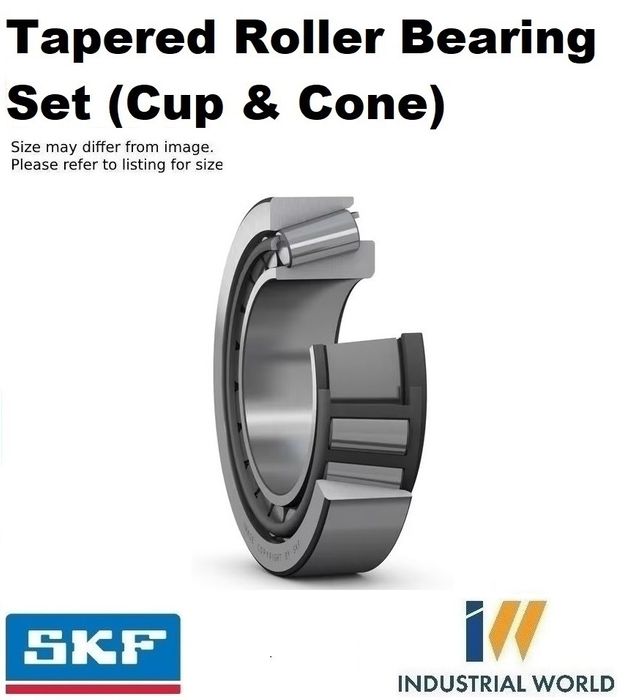

SKF - Metric Tapered Roller Bearing Set

17 x 47 x 15.25 mm (Cup & Cone Set)
Stock Code:
30303_SKF
$27.53 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    1 In Stock
Make an Enquiry
Add to Favourites

Description

30303

SKF - Metric Tapered Roller Bearing Set
17 x 47 x 15.25 mm (Cup & Cone Set)

A basic Tapered Roller bearing consists of two components - an internally angled raceway (Cup), and an externally angled inner ring with cage and rollers (Cone). Tapered roller bearings are designed to accommodate combined radial and axial loads simultaneously. The axial load carrying capacity of tapered roller bearings increases with the increasing geometric contact angle.

Tapered Roller bearings are also available as Assembly units that can facilitate Face to Face or Back to Back mounting with the inclusion of Double Cups or Double Cones, used in conjunction with machined spacers to provide correct bearing preload and Bench End Play (BEP). Tapered Roller bearings are available as single row, double row and multi (four row) designs.

Typical Applications:

• Pumps
• Mill Chocks
• Heavy machinery
• Truck and Passenger vehicles.

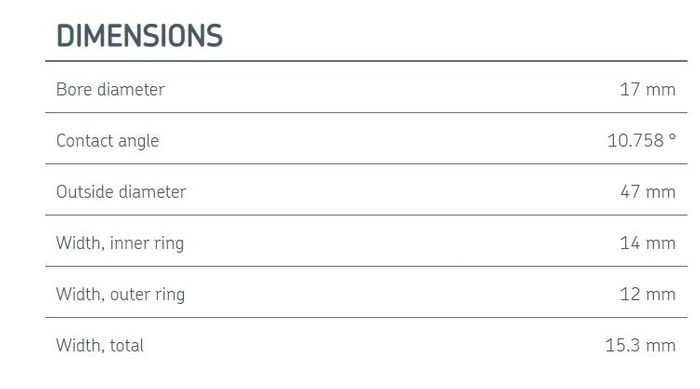

Dimensions

Bore diameter17 mm
Outside diameter47 mm
Width, total15.25 mm
Width, inner ring14 mm
Width, outer ring12 mm
Contact angle10.758 °

Performance

Basic dynamic load rating34.2 kN
Basic static load rating25 kN
Reference speed13 000 r/min
Limiting speed16 000 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Arrangement of contact angle (double-row bearing)Not applicable
Matched arrangementNo
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Unit systemMetric
Indicative carbon footprint for new product0.456 kg CO2e

Logistics

Product net weight0.127 kg
eClass code23-05-09-10
UNSPSC code31171516

The link below is for the SKF Product table, where you can input dimensions and find the right bearing for you.


Click here for catalogue information

Click here for SKF product table

Click here for SKF Tapered roller bearings guide

Click here for SKF Tapered roller bearings product listing (Metric & Inch)

Click here for tapered roller bearing metric guide chart



Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    17 mm
  • Material:
    Chrome Steel
  • Width:
    15.25 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    303
  • Type:
    Set (Cup & Cone)
  • Diameter Outside:
    47 mm
