SKF - Vibration Spherical Roll Brg Cylindial Bore

90 x 190 x 64 C4 Clearance Steel Cage

Stock Code:

22318E-JA-VA405_SKF

$590.11 incl GST

Stock Locations

Ballarat:

5 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

22318E-JA-VA405

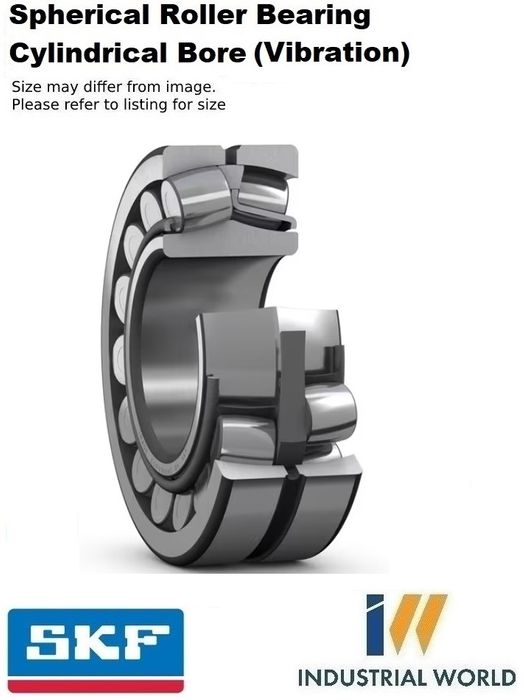

SKF - Spherical Roller Bearing Cylindrical Bore

90.00 mm ID x 190.00 mm OD x 64.00 mm Width

Dealing with very heavy radial and axial loads in applications prone to misalignment or shaft deflections? Meet the challenge with spherical roller bearings, whose high load carrying capacity and ability to accommodate misalignment help you obtain low maintenance costs and long bearing service life.

A spherical roller bearing is a rolling-element bearing that consists of a floating spherical guide ring, and self correction rollers around an inner ring. Due to its design, this allows rotation with low friction, and permits angular misalignment.

SKF invented this bearing type in 1919, and their range is the widest in the industry today – both open and sealed. Our catalog includes spherical roller bearings designed for many applications such as:

• Wind turbine main shafts

• Continuous casters

• Vibratory applications

• High-speed applications

Dimensions

Bore diameter	90 mm
Outside diameter	190 mm
Width	64 mm

Performance

Basic dynamic load rating	637 kN
Basic static load rating	695 kN
Reference speed	2 600 r/min
Limiting speed	3 600 r/min
SKF performance class	SKF Explorer

Properties

Number of rows	2
Locating feature, bearing outer ring	Without
Bore type	Cylindrical
Cage	Surface-hardened sheet metal
Radial internal clearance	C4
Tolerance class for dimensions	Normal, bore to P5 and outside diameter P6
Tolerance class for run-out	Normal
Sealing	Without
Lubricant	None
Relubrication feature	With
