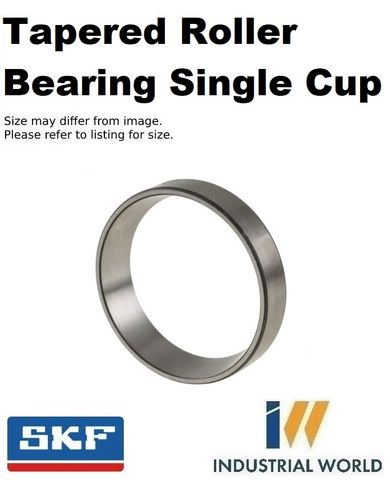

SKF - Tapered Roller Bearing Single Cup

5.51 Inch (139.99 mm) OD 1.13 Inch (28.58 mm) W
Stock Code:
572_SKF
$53.13 incl GST

Stock Locations

  • Ballarat:
    19 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

572

SKF - Tapered Roller Bearing Single Cup
5.51 Inch (139.99 mm) OD 1.13 Inch (28.58 mm) W

A basic Tapered Roller bearing consists of two components - an internally angled raceway (Cup), and an externally angled inner ring with cage and rollers (Cone). Tapered roller bearings are designed to accommodate combined radial and axial loads simultaneously. The axial load carrying capacity of tapered roller bearings increases with the increasing geometric contact angle.

Tapered Roller bearings are also available as Assembly units that can facilitate Face to Face or Back to Back mounting with the inclusion of Double Cups or Double Cones, used in conjunction with machined spacers to provide correct bearing preload and Bench End Play (BEP). Tapered Roller bearings are available as single row, double row and multi (four row) designs.

Typical Applications:

• Pumps
• Mill Chocks
• Heavy machinery
• Truck and Passenger vehicles.

DIMENSIONS
Outside diameter
139.992mm
Width, total
28.575mm
Width, outer ring
28.575mm
Contact angle
15.067°
PROPERTIES
Bearing part
Outer ring (cup)
Arrangement of contact angle (double-row bearing)
Not applicable
Matched arrangement
No
Coating
Without
Sealing
Without
Relubrication feature
Without
Unit system
Inch
Indicative product carbon footprint to manufacture
2.82kg CO2e
LOGISTICS
EAN code
07316570570090
Pack code
12
Products per pack
1
Collecting pack quantity
1
Products per pallet
198
Pack gross weight
0.813kg
Pack length
144mm
Pack height
146mm
Pack width
32mm
Pack volume
0.673dm³
Product net weight
0.783kg
eClass code
23-05-09-10
UNSPSC code
31171516
Enter dimensions into the SKF Product Table to find the right bearing for you.


Click here for SKF product table

Click here for SKF Tapered roller bearings guide

Click here for SKF Tapered roller bearings product listing (Metric & Inch)

Click here for tapered roller bearing metric guide chart


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    -
  • Material:
    Chrome Steel
  • Width:
    28.58 mm (1.13 Inch)
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Chain Series:
    575
  • Type:
    Cup
  • Diameter Outside:
    139.99 mm (5.51 In)
