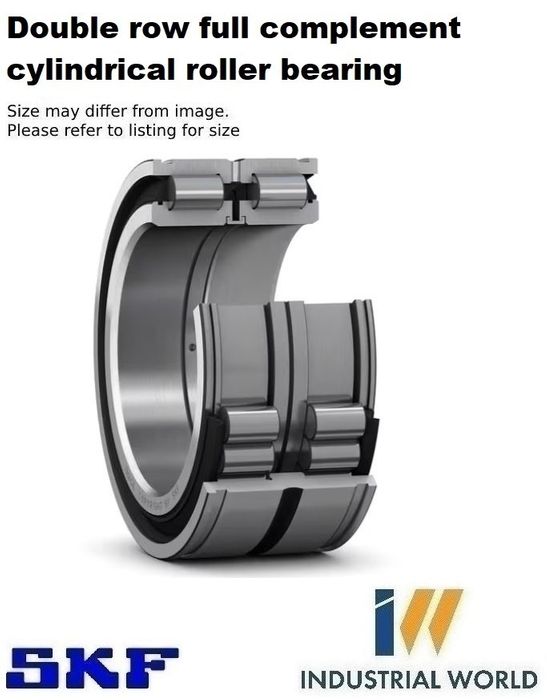

SKF - Sealed Double Row Cylindrical Roller Bearing

Full Compliment 110 x 170 x 80 (NNF 5022 ADB-2LSV)
Stock Code:
NNF5022-ADB-2LSV_SKF
$1,043.20 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

NNF 5022 ADA-2LSV
Double row full complement cylindrical roller bearing, NNF design, with integral sealing and relubrication feature

Double row full complement cylindrical roller bearings incorporate a maximum number of rollers and are therefore suitable for very heavy radial loads in combination with moderate speeds. Having three flanges on the two-piece inner ring and one central flange on the outer ring, NNF design bearings can locate the shaft axially in both directions. Two snap ring grooves in the outer ring simplify mounting and save space axially.

  • Very high radial load carrying capacity
  • High radial stiffness
  • Long service life
  • Locate the shaft axially in both directions
  • Sealed for increased reliability, with relubrication feature

Dimensions

Bore diameter110 mm
Outside diameter170 mm
Width80 mm

Performance

Basic dynamic load rating413 kN
Basic static load rating695 kN
Limiting speed750 r/min

Properties

Bearing partComplete bearing
Axial displacement capabilityNone
Number of rows2
Locating feature, bearing outer ringSnap ring groove
Bore typeCylindrical
CageWithout
Number of flanges, outer ring1
Number of flanges, inner ring2
Loose flangeNone
Radial internal clearanceCN
Tolerance classNormal
CoatingWithout
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWith

Logistics

Product net weight6.45 kg
eClass code23-05-09-01
UNSPSC code31171505



Click here for catalogue information

View product table


View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    110 mm
  • Width:
    80 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    Full Complement
  • Size:
    5022
  • Diameter Outside:
    170 mm
  • Style:
    Full Compliment (NNF)
