FAG - Angular Contact Ball Bearing

30 x 72 x 19
Stock Code:
7306B-2RSTVP_FAG
$335.94 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

7306B-2RSTVP FAG

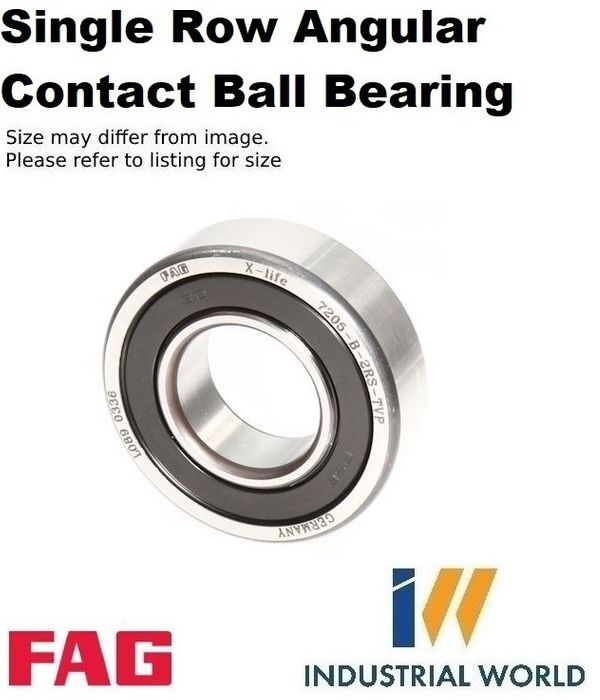

FAG - Angular Contact Ball Bearing

The 7306-B-2RS-TVP FAG is a single row angular contact bearing. These bearings have solid inner- and outer rings. They owe their name to the contact angle that is created as the raceways of the inner and outer rings are offset from each other along the bearing axis. The bearing rings have one high and one low shoulder. Thanks to the low shoulder, a large number of balls can be incorporated in the bearing. Single row angular contact bearings can support high radial forces and axial forces in one direction. The greater the contact angle, the greater the axial load capacity of the bearing.

Product Properties

  • Seal2RS - Rubber Seal on Two Sides
  • Cage Type P - Plastic Molded Cage
  • Precision Standard Precision
  • Contact Angle 40 degrees
  • Pairing No pairing
  • Axial Internal Clearance / Preload No Preload
  • Lubrication Standard Lubrication

Weight and Dimensions

  • Inner (d) MM 30
  • Outer (D) MM 72
  • Width (B) MM 19
  • Inner (d) Inch 1.1811
  • Outer (D) Inch 2.8346
  • Width (B) Inch 0.748
  • Weight (kg) 0.331

Click here for FAG spherical roller information

Data sheet attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    30 mm
  • Width:
    19 mm
  • Brand:
    FAG
  • Metric/Imperial:
    METRIC
  • Type:
    Steel cage
  • Size:
    7306
  • Diameter Outside:
    72 mm
  • Style:
    Sealed
