SKF - Spherical Roller Bearing Tapered Bore

260 x 440 x 180 (24152 CCK30/C3W33)
Stock Code:
24152CCK30-W33-C3_SKF
$7,308.35 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

24152 CCK30/C3W33

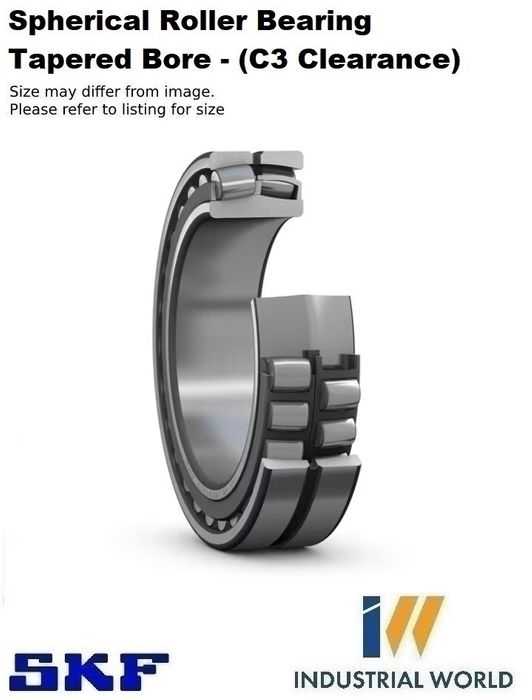

Spherical roller bearing with tapered bore and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter260 mm
Outside diameter440 mm
Width180 mm

Performance

Basic dynamic load rating3 086 kN
Basic static load rating4 800 kN
Reference speed670 r/min
Limiting speed950 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeTapered 1:30
CageSheet metal
Radial internal clearanceC3
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes

Logistics

Product net weight109 kg
eClass code23-05-09-11
UNSPSC code31171510




Click here for catalogue information

View product table

View product guide


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    260 mm
  • Material:
    Chrome Steel
  • Width:
    180 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Taper Bore (K)
  • Size:
    24152
  • Diameter Outside:
    440 mm
