Conversion Chart

SKF - Angular Contact Bearing Brass Cage

60 x 130 x 31 Universal Matching (7312 BEGAM)
Stock Code:
7312BEGAM_SKF
$432.78 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

7312 BEGAM

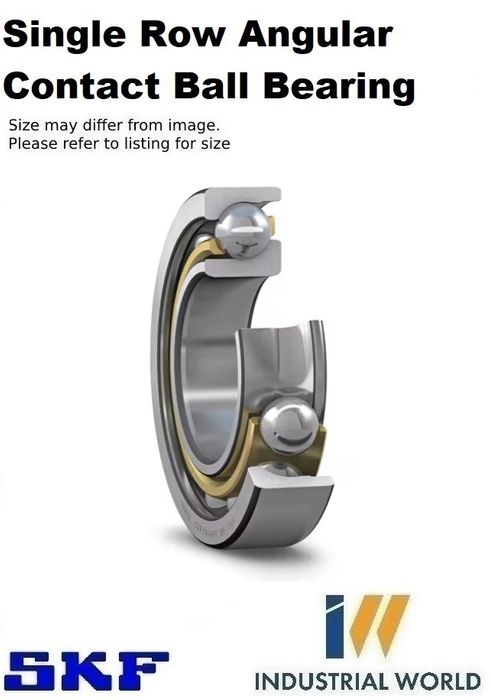

Single row angular contact ball bearing (Brass Cage)

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads

Dimensions

Bore diameter60 mm
Outside diameter130 mm
Width31 mm
Contact angle40 °

Performance

Basic dynamic load rating104 kN
Basic static load rating76.5 kN
Reference speed6 700 r/min
Limiting speed8 500 r/min
SKF performance classSKF Explorer

Properties

Contact typeNormal contact (two-point contact)
Number of rows1
Locating feature, bearing outer ringNone
Ring typeOne-piece inner and outer rings
CageMachined brass
Matched arrangementNo
Universal matching bearingYes
Axial internal clearanceNot applicable
Matched condition (axial clearance/ preload)Light preload
Tolerance classClass P6 (P6)
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight1.88 kg
eClass code23-05-08-03
UNSPSC code31171531



Click here for catalogue information

View product table

View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:

online@iw.net.au

Details

  • Bore Size:
    60 mm
  • Width:
    31 mm
  • Brand:
    SKF
  • Metric/Imperial:
    METRIC
  • Type:
    Brass Cage
  • Size:
    7312
  • Diameter Outside:
    130 mm
  • Style:
    Univeral Matching
