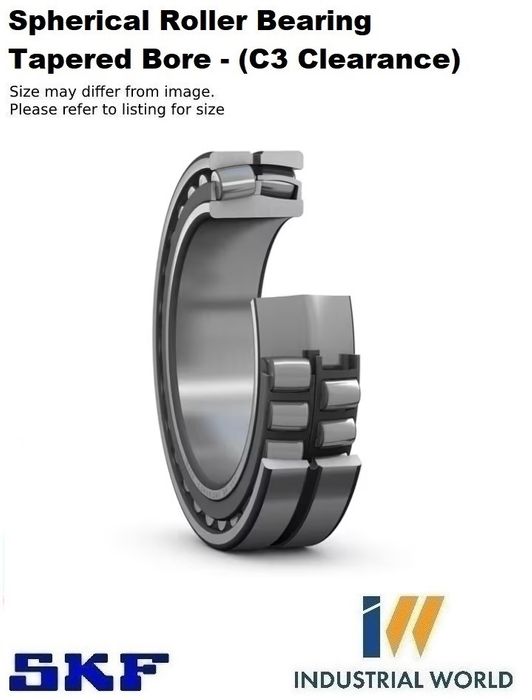

SKF - Spherical Roller Bearing Tapered Bore

170 x 260 x 90 (24034 CCK30/W33)
Stock Code:
24034CCK30-W33_SKF
$1,489.64 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

24034 CCK30/W33
Spherical roller bearing with tapered bore and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter170 mm
Outside diameter260 mm
Width90 mm

Performance

Basic dynamic load rating963 kN
Basic static load rating1 460 kN
Reference speed1 600 r/min
Limiting speed2 400 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeTapered 1:30
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes

Logistics

Product net weight16.6 kg
eClass code23-05-09-11
UNSPSC code31171510




Click here for catalogue information

View product table

View product guide


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    170 mm
  • Material:
    Chrome Steel
  • Width:
    90 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Taper Bore (K)
  • Size:
    24034
  • Diameter Outside:
    260 mm
