Sutton - Carbide Burr - Shank - Tree Shape

Radius End - 9.6 x 19 x 6mm
Stock Code:
SUT-B319SF3AC
$97.81 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    1 In Stock
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

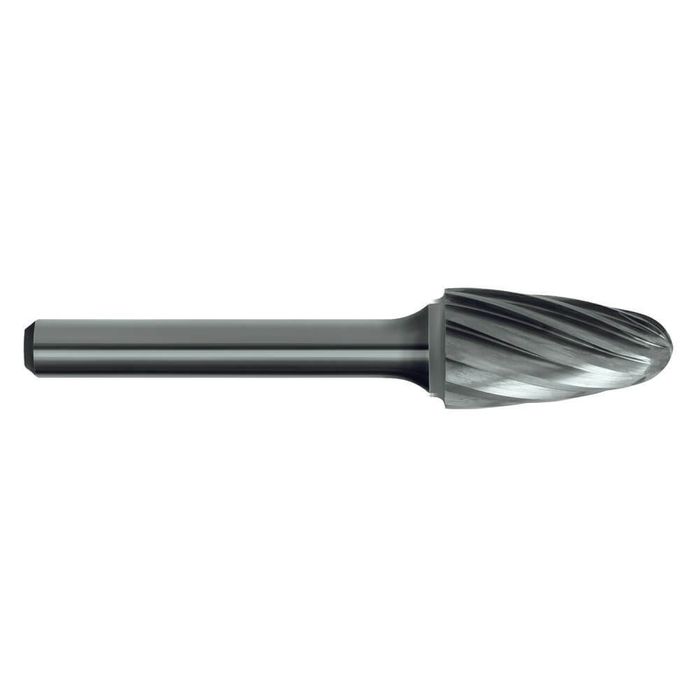

Sutton B319SF3AC 9.6 x 19 x 6mm Shank Carbide Burr Tree Shape Radius End

Suttons Aluminium Cut Carbide Burs - Tree Shape End

Features

  • Tree Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Tree Shape Radius End
  • Application: Aluminium

Applications

  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
  • Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

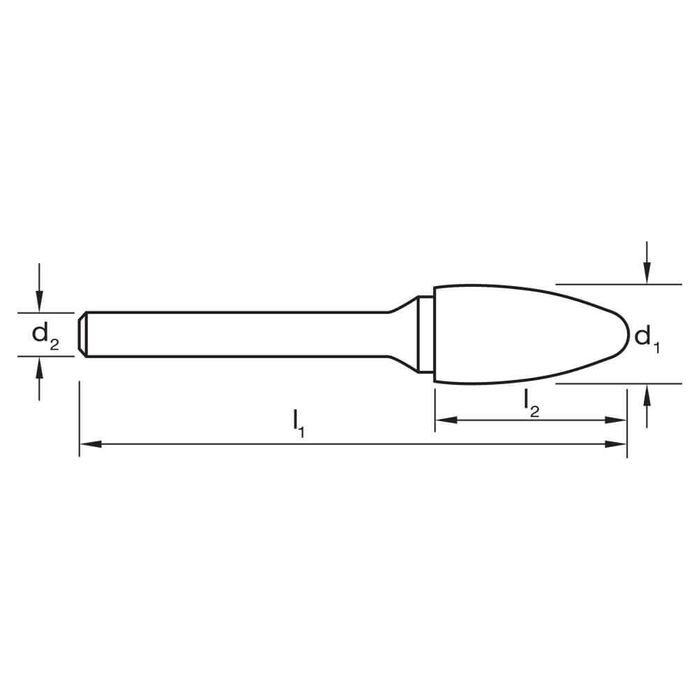

Specifications

  • Burr Diameter (mm) 9.6
  • Overall Length (mm) 63.5
  • Burr Length (mm) 19
  • Shank (mm) 6
  • Group Code B319
  • Type Burr
  • Burr Shape Tree Shape Radius End
  • System of Measurement Metric
  • Material Carbide (VHM)
  • Cut Type Aluminium Cut
