Sutton - Carbide Burr - Shank - Taper Shape

1/2 inch, 6mm
Stock Code:
SUT-B320SL4AC
$170.63 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
2 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

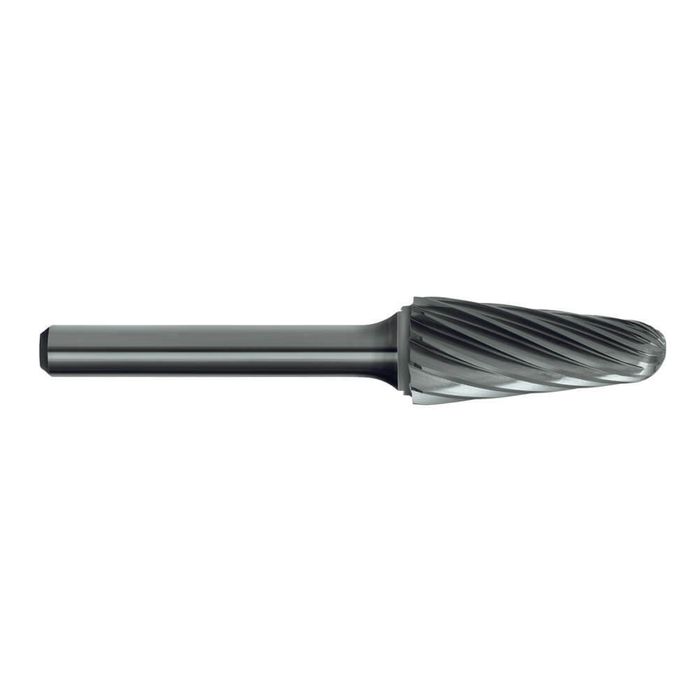

Sutton B220SL4AC 1/2 x 1 1/8 x 1/4 Shank Carbide Burr Taper Shape Radius End

Suttons Aluminium Cut Carbide Burs – Taper Shape

Features

  • Taper Shape Carbide Burs
  • The chisel tooth pattern not only minimizes tool chatter but reduces the chip to a granular shape, in most materials
  • Al Cut for rapid material removal of soft materials such as: Aluminium, Brass, Copper, Plastics that would normally load other cuts

Specifications

  • Material: VHM
  • Finish: Bright
  • Type: Taper Shape
  • Application: Aluminium

Applications

  • Aluminum & Magnesium, wrought alloy - Non Heat Treatable
  • Aluminum & Magnesium, wrought alloy - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy ≤ 12% Si - Non Heat Treatable
  • Aluminum & Magnesium, cast alloy ≤ 12% Si - Heat Treatable: Age Hardened
  • Aluminum & Magnesium, cast alloy >12% Si - Non Heat Treatable
  • Copper & Copper alloys (Brass/Bronze) - Bronze (CuSn)

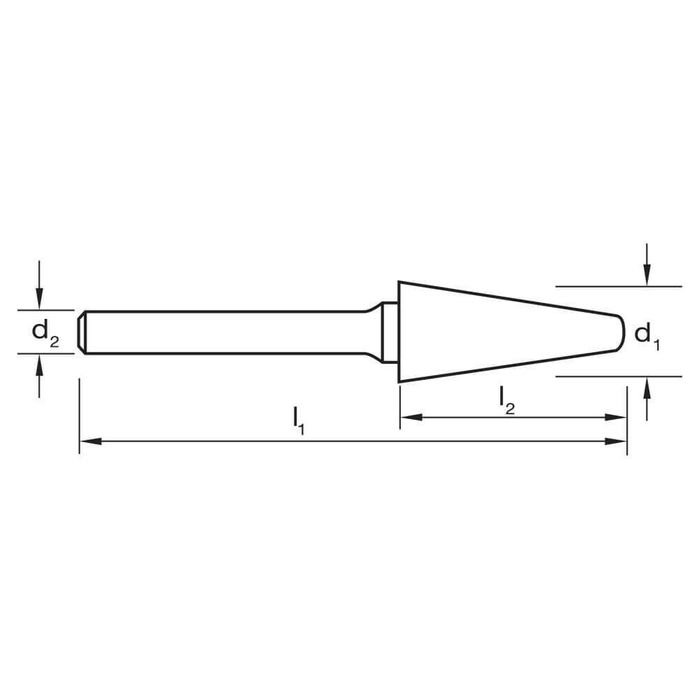

Specifications

  • Burr Diameter (inch) 1/2
  • Overall Length (inch) 2 7/8
  • Burr Length (inch) 1 1/8
  • Shank (inch) 1/4
  • Group Code B220
  • Type Burr
  • Burr Shape Taper Shape Radius End
  • System of Measurement Imperial
  • Material Carbide (VHM)
  • Cut Type Aluminium Cut

Click here for catalogue information

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
