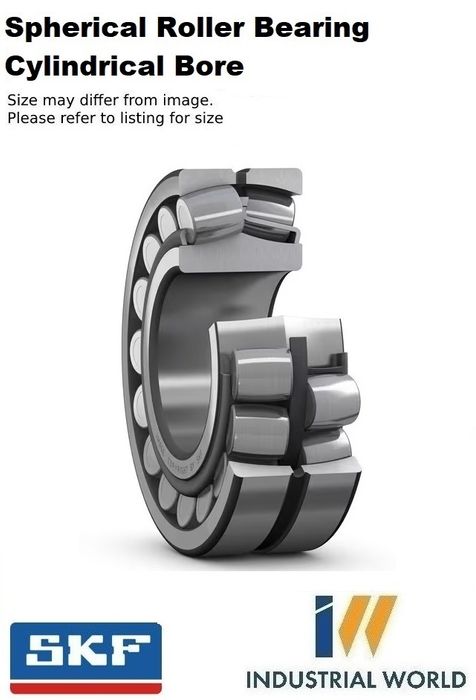

SKF - Spherical Roller Bearing Cylindrical Bore

45 x 100 x 25 (21309 E/C3)
Stock Code:
21309E-C3_SKF
$130.48 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

21309 E/C3
Spherical roller bearing with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter45 mm
Outside diameter100 mm
Width25 mm

Performance

Basic dynamic load rating129 kN
Basic static load rating127 kN
Reference speed6 300 r/min
Limiting speed8 500 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceC3
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Indicative product carbon footprint to manufacture3.45 kg CO2e

Logistics

Product net weight0.958 kg
eClass code23-05-09-11
UNSPSC code31171510

Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    45 mm
  • Material:
    Chrome Steel
  • Width:
    25 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Cylindrical Bore
  • Size:
    21309
  • Diameter Outside:
    100 mm
