SKF - Cylindrical Roller Bearing Steel Cage

120 x 260 x 55 (NU 324 ECJ)
Stock Code:
NU324ECJ_SKF
$1,032.41 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

NU 324 ECJ

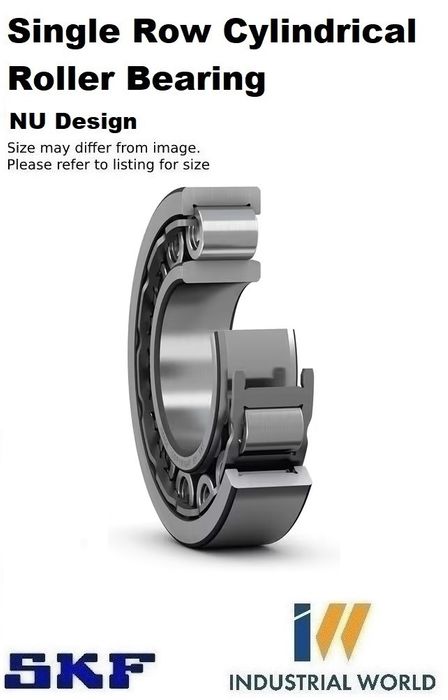

Single row cylindrical roller bearing, NU design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design

Dimensions

Bore diameter120 mm
Outside diameter260 mm
Width55 mm

Performance

Basic dynamic load rating610 kN
Basic static load rating620 kN
Reference speed2 800 r/min
Limiting speed3 200 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Axial displacement capabilityIn both directions
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Number of flanges, outer ring2
Number of flanges, inner ring0
Loose flangeNone
Radial internal clearanceCN
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Indicative carbon footprint for new product47.2 kg CO2e

Logistics

Product net weight13.1 kg
eClass code23-05-09-01
UNSPSC code31171505



Click here for catalogue information

View product table


View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    120 mm
  • Width:
    55 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    Steel Cage
  • Size:
    324
  • Diameter Outside:
    260 mm
  • Style:
    fixed Outer Ring (NU)
