SKF - Metric Tapered Roller Bearing Set

150 x 270 x 77 mm (Cup & Cone Set)
Stock Code:
32230_SKF
$1,670.55 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

32230

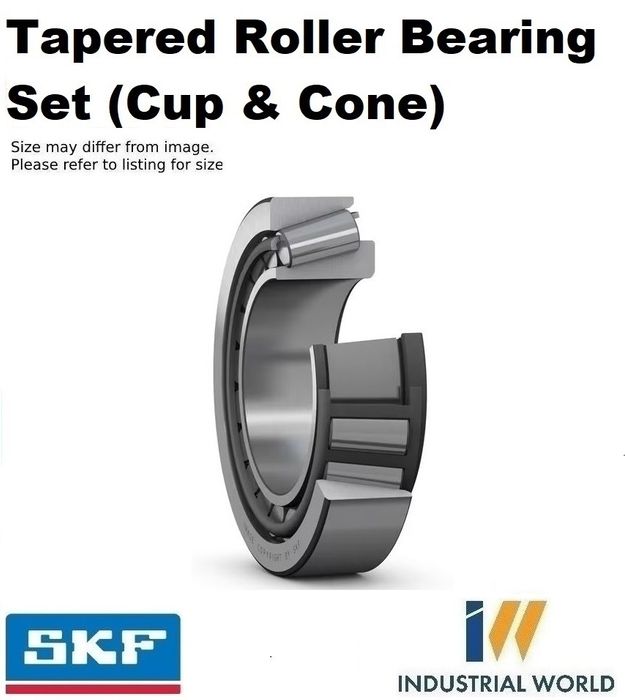

SKF - Metric Tapered Roller Bearing Set
150 x 270 x 77 mm (Cup & Cone Set)

A basic Tapered Roller bearing consists of two components - an internally angled raceway (Cup), and an externally angled inner ring with cage and rollers (Cone). Tapered roller bearings are designed to accommodate combined radial and axial loads simultaneously. The axial load carrying capacity of tapered roller bearings increases with the increasing geometric contact angle.

Tapered Roller bearings are also available as Assembly units that can facilitate Face to Face or Back to Back mounting with the inclusion of Double Cups or Double Cones, used in conjunction with machined spacers to provide correct bearing preload and Bench End Play (BEP). Tapered Roller bearings are available as single row, double row and multi (four row) designs.

Typical Applications:
• Pumps
• Mill Chocks
• Heavy machinery
• Truck and Passenger vehicles.

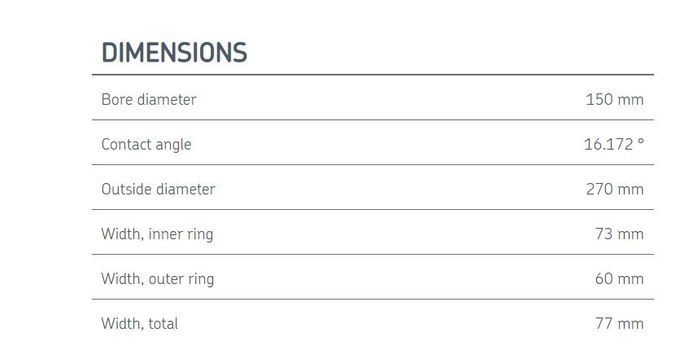

Dimensions

Bore diameter150 mm
Outside diameter270 mm
Width, total77 mm
Width, inner ring73 mm
Width, outer ring60 mm
Contact angle16.172 °

Performance

Basic dynamic load rating782 kN
Basic static load rating1 140 kN
Reference speed1 700 r/min
Limiting speed2 400 r/min

Properties

Bearing partComplete bearing
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Arrangement of contact angle (double-row bearing)Not applicable
Matched arrangementNo
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Unit systemMetric
Indicative carbon footprint for new product64.4 kg CO2e

Logistics

Product net weight17.9 kg
eClass code23-05-09-10
UNSPSC code31171516

The link below is for the SKF Product table, where you can input dimensions and find the right bearing for you.

Click here for catalogue information

Click here for SKF product table

Click here for SKF Tapered roller bearings guide

Click here for SKF Tapered roller bearings product listing (Metric & Inch)

Click here for tapered roller bearing metric guide chart



Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    150 mm
  • Material:
    Chrome Steel
  • Width:
    77 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    322
  • Type:
    Set (Cup & Cone)
  • Diameter Outside:
    270 mm
