SKF - Metric Tapered Roller Bearing Set

65 x 100 x 27 mm (Cup & Cone Set)
Stock Code:
33013_SKF
$226.58 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

33013

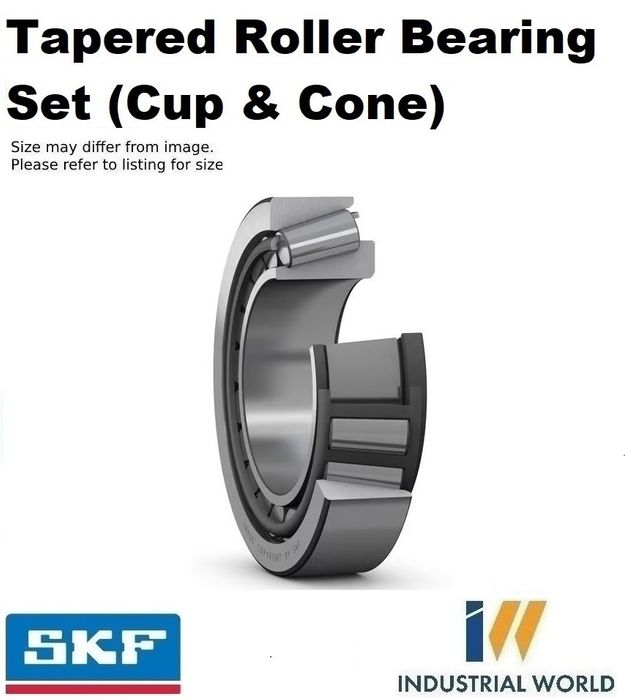

33013 Tapered Roller Bearing Cup & Cone Set

65.00 mm ID x 100.00 mm OD x 27 mm Width

Tapered roller bearings have tapered inner and outer ring raceways as well as tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide a true rolling action and therefore low frictional moments during operation. The axial load carrying capacity of tapered roller bearings increases with increasing geometric contact angle.

Tapered Roller bearings are also available as Assembly units that can facilitate Face to Face or Back to Back mounting with the inclusion of Double Cups or Double Cones, used in conjunction with machined spacers to provide correct bearing preload and Bench End Play (BEP). Tapered Roller bearings are available as single row, double row and multi (four row) designs.

Typical Applications:
• Pumps
• Mill Chocks
• Heavy machinery
• Truck and Passenger vehicles.

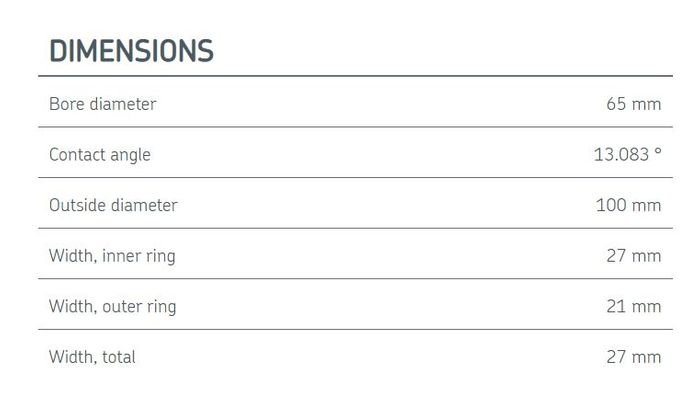

Dimensions

Bore diameter65 mm
Outside diameter100 mm
Width, total27 mm
Width, inner ring27 mm
Width, outer ring21 mm
Contact angle13.083 °

Performance

Basic dynamic load rating119 kN
Basic static load rating153 kN
Reference speed5 000 r/min
Limiting speed6 300 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Arrangement of contact angle (double-row bearing)Not applicable
Matched arrangementNo
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Unit systemMetric
Indicative carbon footprint for new product2.7 kg CO2e

Logistics

Product net weight0.749 kg
eClass code23-05-09-10
UNSPSC code31171516

The link below is for the SKF Product table, where you can input dimensions and find the right bearing for you.


Click here for catalogue information

Click here for SKF product table

Click here for SKF Tapered roller bearings guide

Click here for SKF Tapered roller bearings product listing (Metric & Inch)

Click here for tapered roller bearing metric guide chart


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    65 mm
  • Material:
    Chrome Steel
  • Width:
    27 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    330
  • Type:
    Set (Cup & Cone)
  • Diameter Outside:
    100 mm
