SKF - Metric Tapered Roller Bearing Set

75 x 115 x 31 mm (Cup & Cone Set)
Stock Code:
33015_SKF
$118.56 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

33015

33015 Tapered Roller Bearing Cup & Cone Set

75.00 mm ID x 115.00 mm OD x 31 mm Width

Tapered roller bearings have tapered inner and outer ring raceways as well as tapered rollers. They are designed to accommodate combined loads, i.e. simultaneously acting radial and axial loads. The projection lines of the raceways meet at a common point on the bearing axis to provide a true rolling action and therefore low frictional moments during operation. The axial load carrying capacity of tapered roller bearings increases with increasing geometric contact angle.

Tapered Roller bearings are also available as Assembly units that can facilitate Face to Face or Back to Back mounting with the inclusion of Double Cups or Double Cones, used in conjunction with machined spacers to provide correct bearing preload and Bench End Play (BEP). Tapered Roller bearings are available as single row, double row and multi (four row) designs.

Typical Applications:
• Pumps
• Mill Chocks
• Heavy machinery
• Truck and Passenger vehicles.

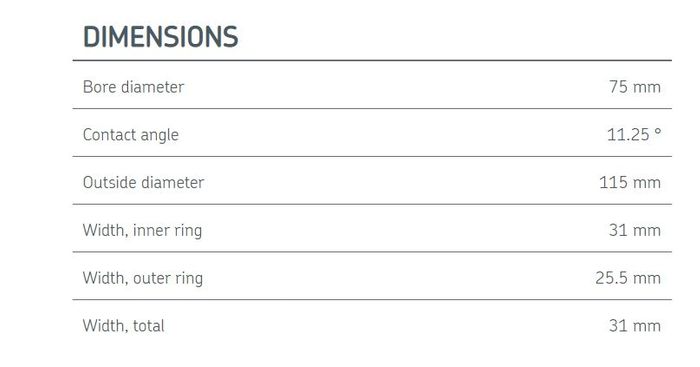

Dimensions

Bore diameter75 mm
Outside diameter115 mm
Width, total31 mm
Width, inner ring31 mm
Width, outer ring25.5 mm
Contact angle11.25 °

Performance

Basic dynamic load rating167 kN
Basic static load rating228 kN
Reference speed4 300 r/min
Limiting speed5 300 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Arrangement of contact angle (double-row bearing)Not applicable
Matched arrangementNo
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Unit systemMetric
Indicative carbon footprint for new product4.15 kg CO2e

Logistics

Product net weight1.15 kg
eClass code23-05-09-10
UNSPSC code31171516

The link below is for the SKF Product table, where you can input dimensions and find the right bearing for you.

Click here for catalogue information

Click here for SKF product table

Click here for SKF Tapered roller bearings guide

Click here for SKF Tapered roller bearings product listing (Metric & Inch)

Click here for tapered roller bearing metric guide chart



Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    75 mm
  • Material:
    Chrome Steel
  • Width:
    31 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    330
  • Type:
    Set (Cup & Cone)
  • Diameter Outside:
    115 mm
