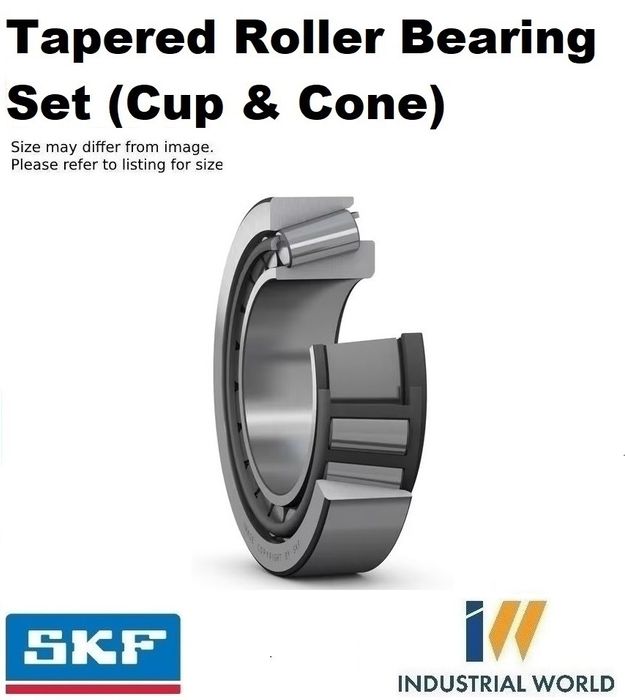

SKF - Metric Tapered Roller Bearing Set

240 x 440 x 127 mm (Cup & Cone Set)
Stock Code:
32248_SKF
$12,094.45 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

32248

SKF - Metric Tapered Roller Bearing Set
240 x 440 x 127 mm (Cup & Cone Set)

A basic Tapered Roller bearing consists of two components - an internally angled raceway (Cup), and an externally angled inner ring with cage and rollers (Cone). Tapered roller bearings are designed to accommodate combined radial and axial loads simultaneously. The axial load carrying capacity of tapered roller bearings increases with the increasing geometric contact angle.

Tapered Roller bearings are also available as Assembly units that can facilitate Face to Face or Back to Back mounting with the inclusion of Double Cups or Double Cones, used in conjunction with machined spacers to provide correct bearing preload and Bench End Play (BEP). Tapered Roller bearings are available as single row, double row and multi (four row) designs.

Typical Applications:
• Pumps
• Mill Chocks
• Heavy machinery
• Truck and Passenger vehicles.

Dimensions

Bore diameter240 mm
Outside diameter440 mm
Width, total127 mm
Width, inner ring120 mm
Width, outer ring100 mm
Contact angle16.172 °

Performance

Basic dynamic load rating1 918 kN
Basic static load rating3 350 kN
Reference speed1 000 r/min
Limiting speed1 300 r/min

Properties

Bearing partComplete bearing
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Arrangement of contact angle (double-row bearing)Not applicable
Matched arrangementNo
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Unit systemMetric
Candidate for remanufacturingYes
Indicative carbon footprint for new product300 kg CO2e
Indicative carbon footprint for remanufactured product105 kg CO2e

Logistics

Product net weight83.4 kg
eClass code23-05-09-10
UNSPSC code31171516

The link below is for the SKF Product table, where you can input dimensions and find the right bearing for you.

Click here for catalogue information

Click here for SKF product table

Click here for SKF Tapered roller bearings guide

Click here for SKF Tapered roller bearings product listing (Metric & Inch)

Click here for tapered roller bearing metric guide chart


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:

online@iw.net.au

Details

  • Bore Size:
    240 mm
  • Material:
    Chrome Steel
  • Width:
    127 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    322
  • Type:
    Set (Cup & Cone)
  • Diameter Outside:
    440 mm
