SKF - Double Lip Oil Seal - NBR

26 X 38 X 5 (TC Type)
Stock Code:
26X38X5HMSA10RG_SKF
$8.47 incl GST

Stock Locations

  • Ballarat:
    8 In Stock
10 On Order
Make an Enquiry
Add to Favourites

Description

26X38X5 HMSA10 RG

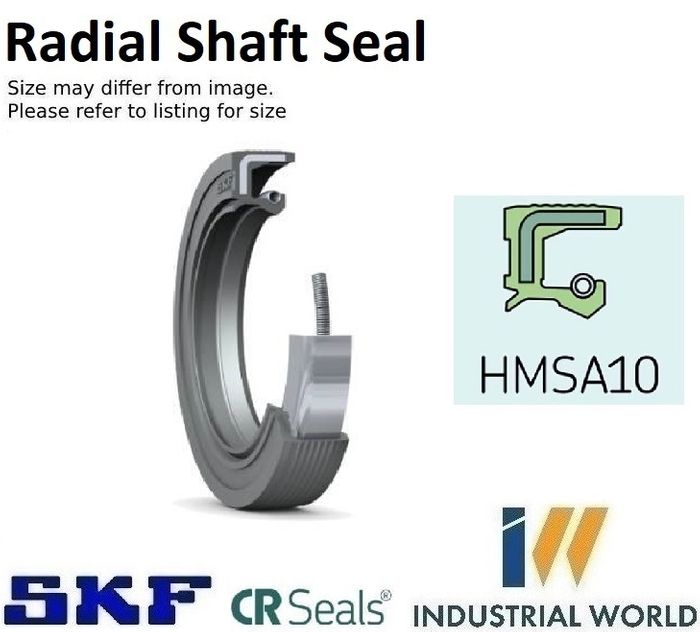

Radial shaft seal with rubber outside diameter and single sealing lip, for oil or grease

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environments.

  • High pumping rate
  • Higher contamination exclusion with dust lip
  • With garter spring
  • Accommodates misalignment

Dimensions

Shaft diameter26 mm
Housing bore diameter38 mm
Seal width5 mm

Performance

Limiting speed3 840 r/min
Maximum operating temperature100 °C
Minimum operating temperature-40 °C
Permissible circumferential speed5.19 m/s
Rotational speed3 840 r/min

Properties

DesignHMSA10
Auxiliary lipYes
Sealing lip materialNitrile rubber (NBR)
Type of outside diameterRubber metal reinforced
Unit systemMetric

Logistics

Product net weight0.0063 kg
eClass code23-07-08-01
UNSPSC code31181602

Click here for catalogue information

View product table

Click here for SKF industrial shaft seals handbook PDF

Click here for SKF HMS5 & HMSA10 handbook PDF

Click here for SKF CR Seals handbook PDF

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    26 mm
  • Material:
    Nitrile (NBR)
  • Width:
    5 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    TC (Double Lip) Rubber OD
  • Diameter Outside:
    38 mm
  • Style:
    HMSA10
