SKF - Double Lip Oil Seal - NBR

16 X 30 X 7 (TC Type)

Stock Code:

16X30X7HMSA10RG_SKF

$5.83 incl GST

Stock Locations

Ballarat:

46 In Stock
Shepparton:

4 In Stock

Make an Enquiry

Add to Favourites

Description

16X30X7 HMSA10 RG

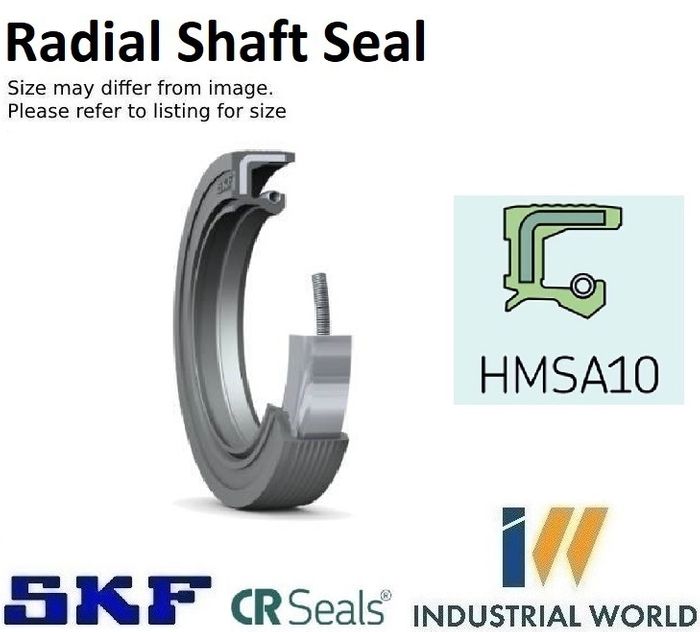

Radial shaft seal with rubber outside diameter and single sealing lip, for oil or grease

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.

High pumping rate
Higher contamination exclusion with dust lip
With garter spring
Accommodate misalignment

Dimensions

Shaft diameter	16 mm
Housing bore diameter	30 mm
Seal width	7 mm

Performance

Limiting speed	3 840 r/min
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Permissible circumferential speed	3.22 m/s
Rotational speed	3 840 r/min
