SKF - Double Lip Oil Seal - FKM (VITON)

18 X 35 X 7 (TC Type) Fluoro Rubber 200 Deg

Stock Code:

18X35X7HMSA10V_SKF

$13.92 incl GST

Stock Locations

Ballarat:

10 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

18X35X7HMSA10V

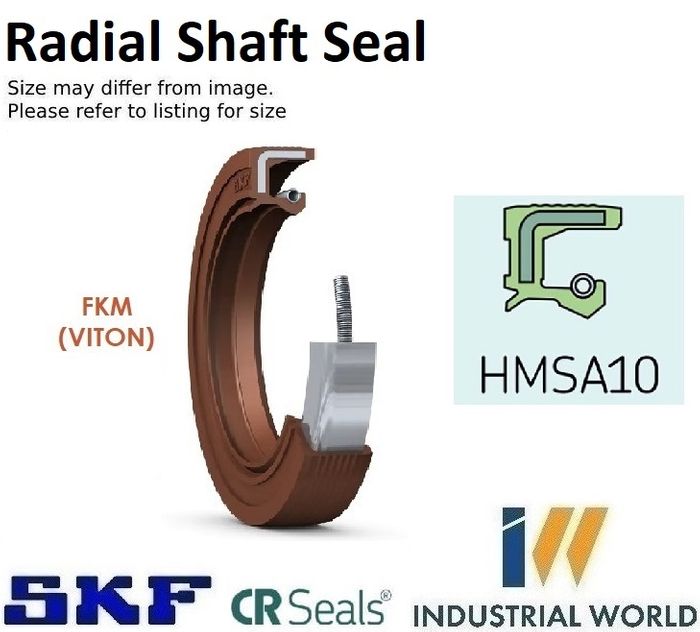

Radial shaft seal with rubber outside diameter and single sealing lip, for oil or grease

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environments.

High pumping rate
Higher contamination exclusion with dust lip
With garter spring
Accommodates misalignment

Dimensions

Shaft diameter	18 mm
Housing bore diameter	35 mm
Seal width	7 mm

Performance

Limiting speed	14 580 r/min
Maximum operating temperature	200 °C
Minimum operating temperature	-25 °C
Permissible circumferential speed	13.7 m/s
Rotational speed	14 580 r/min
