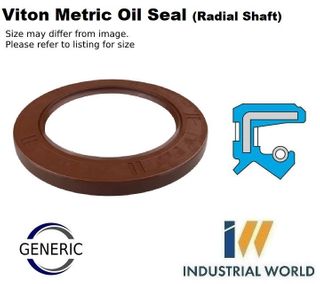

SKF - Double Lip Oil Seal - FKM (VITON)

20 X 35 X 7 (TC Type) Fluoro Rubber 200 Deg
Stock Code:
20X35X7HMSA10V_SKF
$13.92 incl GST

Stock Locations

  • Ballarat:
    4 In Stock
  • Shepparton:
    Special Order
10 On Order
Make an Enquiry
Add to Favourites

Description

20X35X7HMSA10V

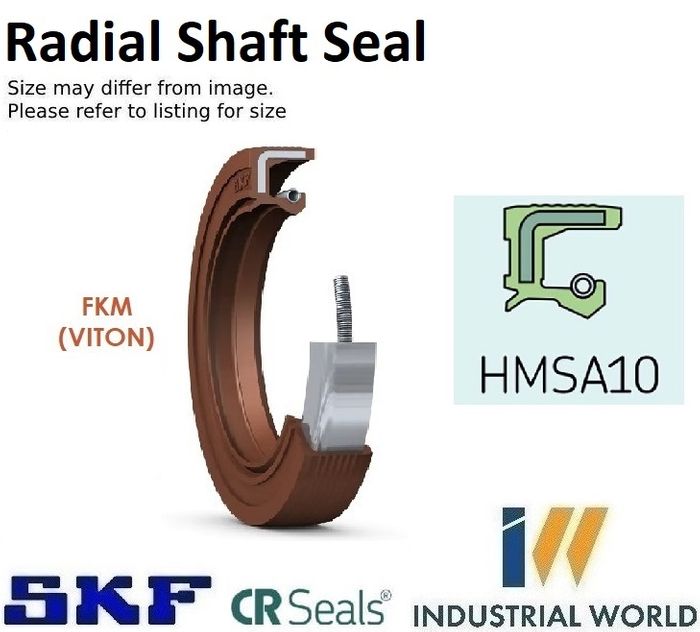

Radial shaft seals for general industrial applications

Radial shaft seals sit between rotating and stationary components, or two components in relative motion.

They have two main parts. One is a cylindrical outer covering with an interference fit that seals statically against the housing bore.

The second, a sealing lip, seals dynamically and statically against the shaft. Its sealing edge presses against the counter face surface of the shaft with a defined radial load.

Dimensions

Shaft diameter20 mm
Housing bore diameter35 mm
Seal width7 mm

Performance

Limiting speed14 220 r/min
Maximum operating temperature200 °C
Minimum operating temperature-25 °C
Permissible circumferential speed14.9 m/s
Rotational speed14 220 r/min

Properties

DesignHMSA10
Auxiliary lipYes
Sealing lip materialFluoro rubber (FKM)
Type of outside diameterRubber metal reinforced
Unit systemMetric

Logistics

Product net weight0.0097 kg
eClass code23-07-08-01
UNSPSC code31181602

Click here for catalogue information

View product table

Click here for SKF industrial shaft seals handbook PDF

Click here for SKF HMS5 & HMSA10 handbook PDF

Click here for SKF CR Seals handbook PDF

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    20 mm
  • Material:
    Viton (FKM)
  • Width:
    7 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    TC (Double Lip) Rubber OD
  • Diameter Outside:
    35 mm
  • Style:
    HMSA10
