SKF - Double Lip Oil Seal - FKM (VITON)

190 X 220 X 12 (TC Type) Fluoro Rubber 200 Deg
Stock Code:
190X220X12HMSA10V_SKF
$270.99 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

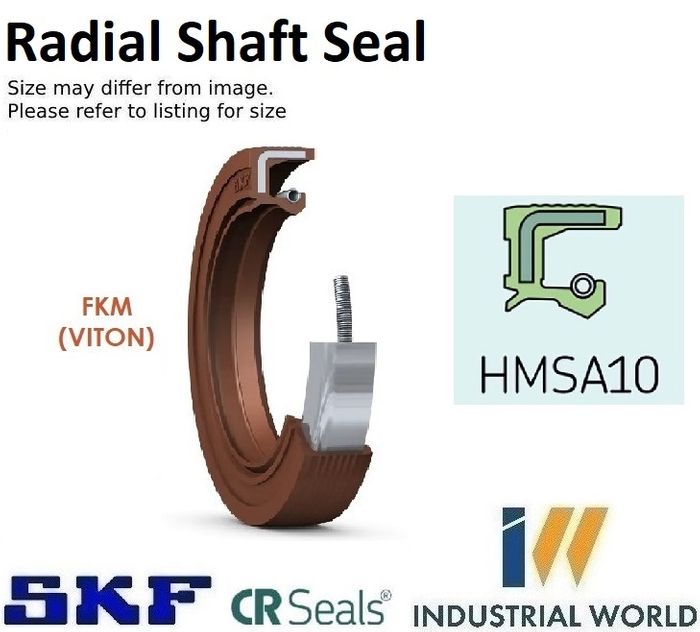

190X220X12 HMSA10 V1
Radial shaft seal with rubber outside diameter and single sealing lip, for oil or grease

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environments.

  • High pumping rate
  • Higher contamination exclusion with dust lip
  • With garter spring
  • Accommodates misalignment

Dimensions

Shaft diameter190 mm
Housing bore diameter220 mm
Seal width12 mm

Performance

Limiting speed3 840 r/min
Maximum operating temperature200 °C
Minimum operating temperature-25 °C
Permissible circumferential speed38 m/s
Rotational speed3 840 r/min

Properties

DesignHMSA10
Auxiliary lipYes
Sealing lip materialFluoro rubber (FKM)
Type of outside diameterRubber metal reinforced
Unit systemMetric

Logistics

Product net weight0.22 kg
eClass code23-07-08-01
UNSPSC code31181602

Click here for catalogue information

View product table

Click here for SKF industrial shaft seals handbook PDF

Click here for SKF HMS5 & HMSA10 handbook PDF

Click here for SKF CR Seals handbook PDF

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    190 mm
  • Material:
    Viton (FKM)
  • Width:
    12 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    TC (Double Lip) Rubber OD
  • Diameter Outside:
    220 mm
  • Style:
    HMSA10
