SKF - Double Lip Oil Seal - FKM (VITON)

130 X 230 X 14 (TC Type) Fluoro Rubber 200 Deg
Stock Code:
130X230X14HMSA10V_SKF
$424.71 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

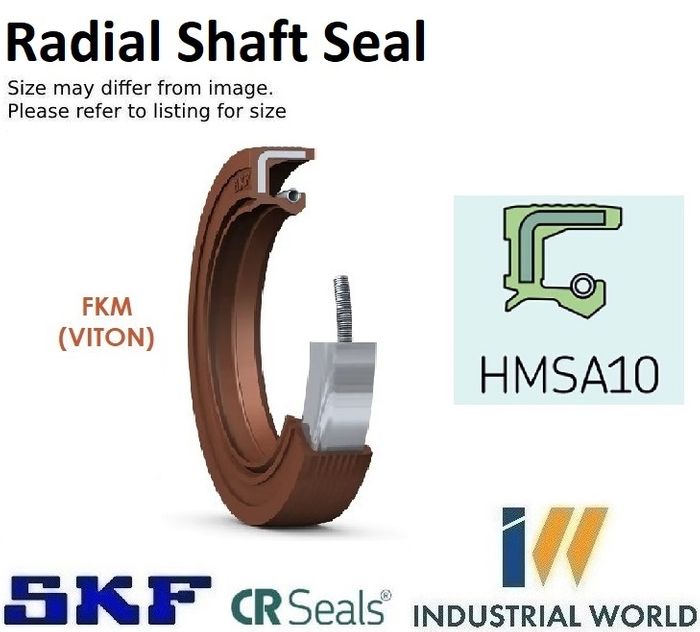

130X230X14 HMSA10 V
Radial shaft seal with rubber outside diameter and single sealing lip, for oil or grease

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. HMSA10 seals are designed with a rubber outside diameter. They have a conventional sealing lip made of elastomer. A garter spring in the seal and a non-contacting auxiliary lip optimize the sealing against the shaft also in polluted environment.

  • High pumping rate
  • Higher contamination exclusion with dust lip
  • With garter spring
  • Accommodate misalignment

Dimensions

Shaft diameter130 mm
Housing bore diameter230 mm
Seal width14 mm

Performance

Limiting speed5 280 r/min
Maximum operating temperature200 °C
Minimum operating temperature-25 °C
Permissible circumferential speed35.91 m/s
Rotational speed5 280 r/min

Properties

DesignHMSA10
Auxiliary lipYes
Sealing lip materialFluoro rubber (FKM)
Type of outside diameterRubber metal reinforced
Unit systemMetric

Logistics

Product net weight0.411 kg
eClass code23-07-08-01
UNSPSC code31181602

Click here for catalogue information

View product table

Click here for SKF industrial shaft seals handbook PDF

Click here for SKF HMS5 & HMSA10 handbook PDF

Click here for SKF CR Seals handbook PDF

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    130 mm
  • Material:
    Viton (FKM)
  • Width:
    14 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    TC (Double Lip) Rubber OD
  • Diameter Outside:
    230 mm
  • Style:
    HMSA10
