SKF - B Section V-Belt PHG B114

B114 / 2939mm Pitch / 2965mm Outside (Wrapped)

Stock Code:

B114_SKF

$49.04 incl GST

Stock Locations

Ballarat:

17 In Stock
Shepparton:

2 In Stock

Make an Enquiry

Add to Favourites

Description

PHG B114

Wrapped classical V-belt

Belts provide a very efficient and cost-effective method for transmitting power from prime movers to driven machines.

Classical V-belts have pre-tensioned polyester cords that provide low stretch during operation and a fibre-loaded rubber cushion that gives good transverse rigidity.

Being fully wrapped in a heavy duty industrial fabric, the belts have a high resistance against abrasion.

High flexibility
Low elongation during operation
Oil and heat resistant, with anti-static properties
Fully wrapped to resist abrasion
Reduced energy consumption and increased mean time between failures
Temperature range from –35 to +65 °C

Applications

SKF Wrapped Classical Belts have been developed to handle the majority of industrial
applications and some agricultural machines.

They can run on ISO wedge as well as on classical V-belt pulleys.
Suitable for V-flat drives (flying wheel applications).
Standards ISO 4184

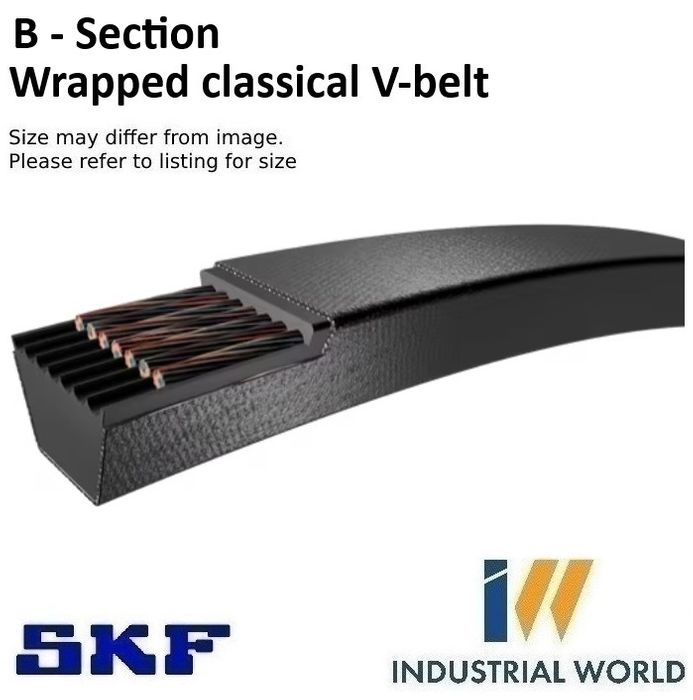

Construction

Cushion rubber
Cushion rubber provides good adhesion between the tension members (cords) and
the rubber cushion.
Tension members
The tension cords are made from polyester
yarn. Pre-loading the cords during their
rubber impregnation process results in low
stretch during operation.
Rubber cushion
The rubber cushion is fibre loaded giving
good transverse belt rigidity
Wrapping fabric
Heavy duty industrial fabric.
