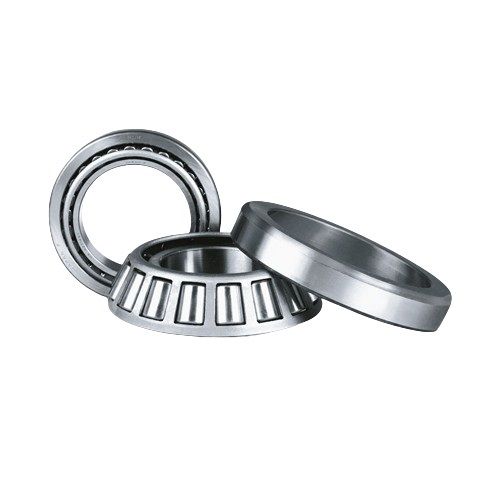

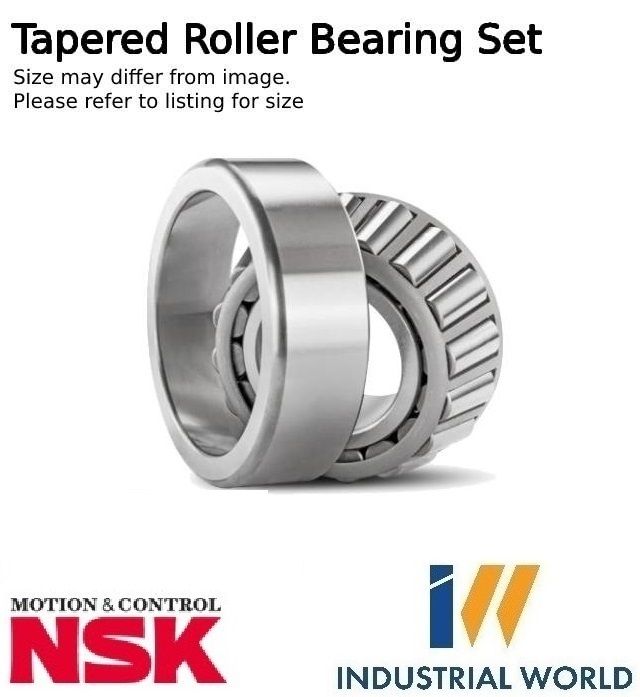

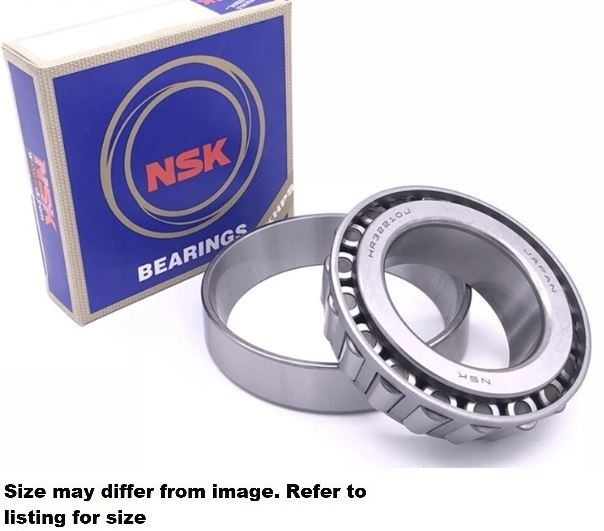

NSK - Tapered Roller Bearing Single Assembly

50.8 x 101.6 x 36.07 (529XR/522R)
Stock Code:
529-522_NSK
$222.26 incl GST

Stock Locations

  • Ballarat:
    4 In Stock
Make an Enquiry
Add to Favourites

Description

529-522 NSK

Tapered Roller Bearing Single Assembly

50.8 x 101.6 x 36.07 (529XR/522R)

Tapered roller bearings are designed so that the imagined conical apices formed by the raceways of the inner and outer rings and the rollers all converge at one point on the bearing axis. The trapezoidal tapered rollers used as the rolling elements are guided by a large rib on the inner ring.

TRBs can take radial loads and axial loads in one direction. When load is applied, the axial component generated inside the bearing generally requires the use of two opposed bearings (similar to angular contact ball bearings) or double-row bearings. Spacers are used to adjust the inner and outer rings in the axial direction to achieve the proper internal clearance. Since they are separable, the inner ring (cone) assemblies and outer rings (cups) can be mounted independently.

The HR Series increases both the size and number of rollers for even higher load capacity.

Tapered roller bearings are divided by their contact angle into normal-, medium-, and steep-angle types. In addition to double-row types, four-row tapered roller bearings are also available. Pressed cages are generally used, though large bearings may utilize pin-type cages.

Features

  • Support all types of loads
    Tapered roller bearings can take moment loads, axial loads, and radial loads in any direction.
  • High rigidity with high load capacity
    TRBs are especially suited for applications requiring moment rigidity. Applying a preload can increase rigidity even further.

Applications

  • Gearboxes for industrial machinery, roller shaft support (roll necks), cantilevel wheel axles
  • Pumps
  • Mill Chocks
  • Heavy machinery
  • Truck and Passenger vehicles.

Click here for catalogue information

Click here for PDF information

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au



Details

  • Bore Size:
    50.8 mm (2 Inch)
  • Material:
    Chrome Steel
  • Width:
    34.93 mm (1.38 Inch)
  • Brand:
    NSK
  • Metric/Imperial:
    Imperial
  • Chain Series:
    525
  • Type:
    Set (Cup & Cone)
  • Diameter Outside:
    101.6 mm (4 In)
