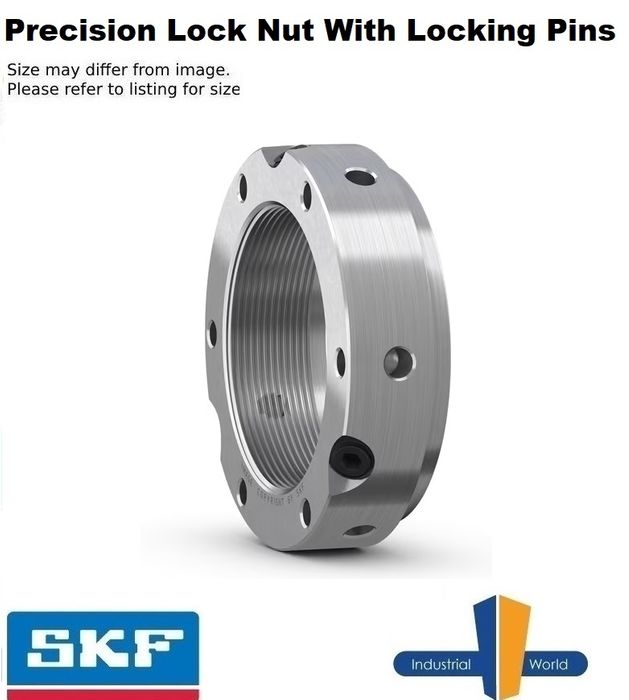

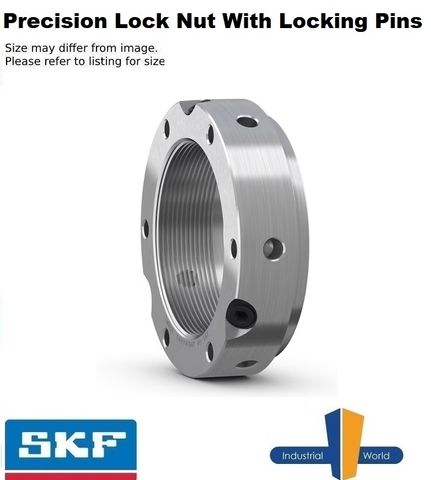

SKF - KMT Precision Lock Nut with Locking Pins

Stock Code:
KMTA32_SKF
$687.08 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

KMTA 32
Precision lock nut with locking pins

KMTA precision lock nuts have a cylindrical outside surface and are intended for applications where high precision, simple assembly and reliable locking are required. The three equally-spaced locking pins enable these lock nuts to be accurately positioned at right angles to the shaft. However, they can also be adjusted to compensate for slight angular deviations of adjacent components. Maximum axial run-out between the locating face and thread (up to size 40): 0.005 mm.

  • No keyway required
  • Withstands high axial loads
  • Reliable, effective locking mechanism
  • Designed for frequent and simple installation and removal
  • Available for thread M 25x1.5 to M 200x3 (sizes 5 to 40)

Dimensions

Thread designationM 160x3
Bore diameter160 mm
Outside diameter205 mm
Width32 mm

Properties

Locking deviceIncorporated in the lock nut
Nut for hydraulic mountingNo
Associated mounting toolB 205-220

Logistics

Product net weight2.95 kg
eClass code23-11-07-05
UNSPSC code31163218

Click here for product information

View product table

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M160x3
  • Material:
    Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Style:
    Locking Pin
