SKF - Labyrinth Seal 88.9 mm shaft (3-1/2 Inch)

steel with Silicone o-ring (one side)
Stock Code:
TSN520SE_SKF
$682.97 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

TSN 520 SE

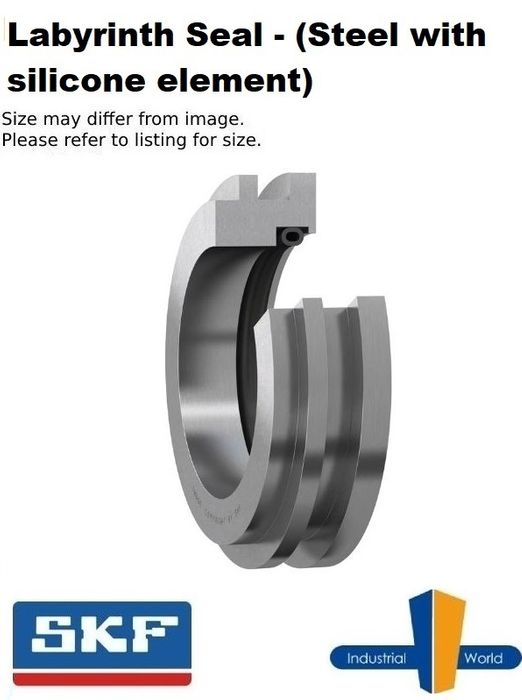

SKF Labyrinth seal TSN520SE

SNL housing seals are the first barrier against contamination. For applications where there are high speeds or extreme temperatures, SKF recommends using labyrinth seals, and for highly contaminated environments, SKF recommends the three-barrier solution. This cost-effective sealing solution can have a significant impact on bearing service life as contaminants have to pass through three barriers to reach the bearing.

  • Good protection from contamination
  • Keep the lubricant in the housing
  • Part of the three barrier solution
  • Cost-effective

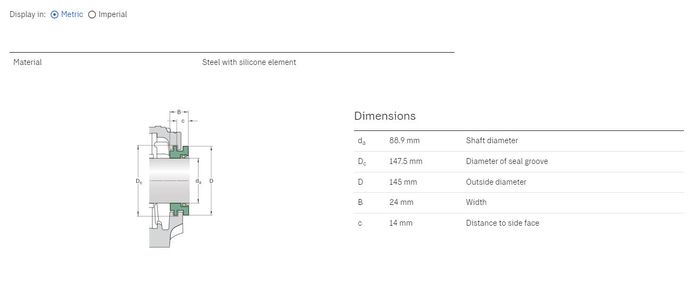

Dimensions

Outside diameter145 mm
Shaft diameter88.9 mm
Housing groove diameter147.5 mm
Width24 mm

Properties

Accessory typeHousing seal
Sealing typeLabyrinth
MaterialSteel with silicone element

Logistics

Product net weight1.67 kg
eClass code23-05-17-90
UNSPSC code31171519

Click here for product information

Click here for product table

See the attached technical specification (PDF File) for details

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Steel with silicone o-ring
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Size:
    520
  • Style:
    Seal - Labyrinth
