Conversion Chart

SPB SECTION OPTI WRAPPED VEE-BELT

Stock Code:
8V3000BLUE_OPTI
$1,826.30 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

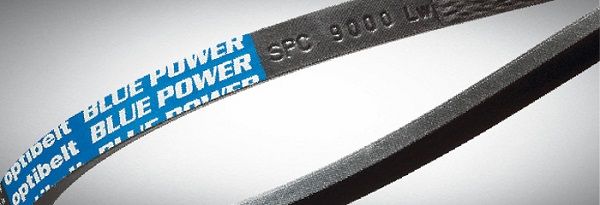

8V 3000 BP optibelt - BLUE POWER

High performance wedge belt with aramid tension cord

The wrapped high-performance wedge belt optibelt BLUE POWER has a high-strength aramid cord and is particularly suitable as a single belt, in a set or as a kraftband for large, very heavily loaded drives.

Top performance

The performance of an optibelt BLUE POWER wedge belt is approximately twice that of a narrow V-belt in a standard technical design. This corresponds to a performance increase of up to 100%. If several V-belts are operated side by side, an order in the set is required.

More power

Our high-performance wedge belt offers up to twice the power of a standard sheathed belt, making it the ideal choice for demanding industrial applications. Engineered with advanced materials and cutting-edge technology, this belt provides superior efficiency, increased load capacity, and extended durability.

Quality Attributes

  • Extremely low elongation due to aramid cord
  • Suitable for heavy-duty drives
  • Suitable for back tensioning rollers
  • Temperature range -30°C to +100°C
  • Up to twice the power of a standard sheathed belt
  • Electrically conductive
Attributes
  • 8V Section
  • 300.00" Outside Length
  • Single Belt
  • Aramid tension cord
  • Non Cogged
Features
  • Aramid cord - extremely low stretch for Heavy loaded drives
  • Temperature range -30°C to + 100°C
  • Suitable for back bend idlers
  • Electrically conductive

The optibelt BLUE POWER high performance wrapped wedge belt has a high-strength aramid cord, and is suitable as an individual belt, in a set or as a kraftband and is particularly suited for large, heavily loaded drives.

Notes
  • optibelt Blue Power must be used in match sets.
  • Consult with Optibelt before retrofitting onto any drive.

Please Note - The size of the belt should always be checked with original before purchasing. This is because sometimes different belts are used within the same model/engine variation when there is more than 1 type of alternator / air compressor / power steering pump / etc. used.

Product guides below

Click here for optibelt blue power 8v flyer

Click here for optibelt blue power flyer

Click here for optibelt V-belt drives technical manual

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    OPTI
  • Number of Rows:
    1
  • Size:
    3000
  • Belt Type:
    8V (25 mm)
  • Style:
    Blue Power
