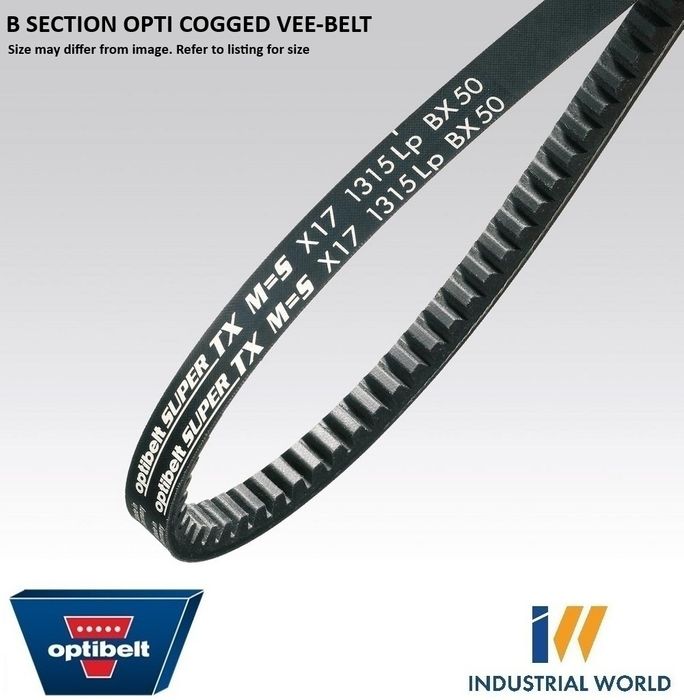

B SECTION OPTI COGGED VEE-BELT

BX80 / 2075mm Pitch / 2101mm Outside

Stock Code:

BX80_OPTI

$124.64 incl GST

Stock Locations

Ballarat:

2 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

DESCRIPTION

Optibelt SUPER TX

BX80 - (B SECTION OPTI COGGED VEE-BELT)

2075mm Pitch / 2101mm Outside

X17 X 2072

Datum Length (mm) 2072

The extraordinary flexibility of the raw edge, moulded cogged optibelt SUPER TX V-belts enables the use of extremely small pulley diameters.

Optibelt SUPER X-POWER M=S V-belts are recommended for mechanical engineering applications wherever wrapped V-belts are likely to reach their performance limits.

Versatile use

The advantages of the optibelt SUPER TX M=S V-belts always come into their own where extremely small pulley diameters, high speeds, extraordinary power requirements and higher ambient temperatures make the use of wrapped V-belts seem not economical or sensible.

High-quality

Rubber compounds combined with low-stretch tension cords ensure high power transmission and increased service life.

M=S Set constant

optibelt SUPER TX M=S V-belts can be used without measurement and ensure a wide performance range with high efficiency.

Quality Attributes / Advantages

Low stretch
High power transmission
M=S Set Constant
Extreme transverse rigidity
Improved abrasion resistance
Temperature range -30°C to +90°C
Sophisticated material technology
Outstanding efficiency
Electrically conductive
Extremely small pulley diameters
Allows drive ratios up to 1:12

Application areas / machines

– Compressors
– Fans
– Compactors
– Pumps
– Wood working machines
– High performance saws
– Special machines

Machine tools

– lathes and drilling machines
– grinding machines

Please Note - The size of the belt should always be checked with original before purchasing. This is because sometimes different belts are used within the same model/engine variation when there is more than one type of alternator / air compressor / power steering pump / etc. used.
