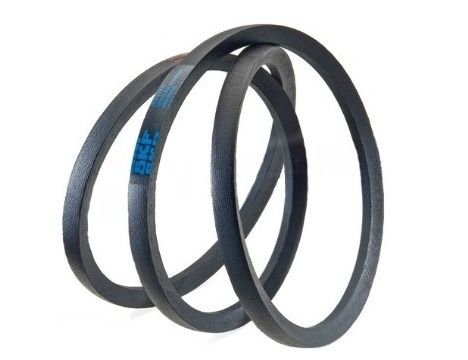

SKF - Z (M) Section V-Belt PHG Z90

Z90 / 2304mm Pitch / 2322mm Outside (Wrapped)

Stock Code:

Z90_SKF

$21.19 incl GST

Stock Locations

Ballarat:

10 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

PHG Z90

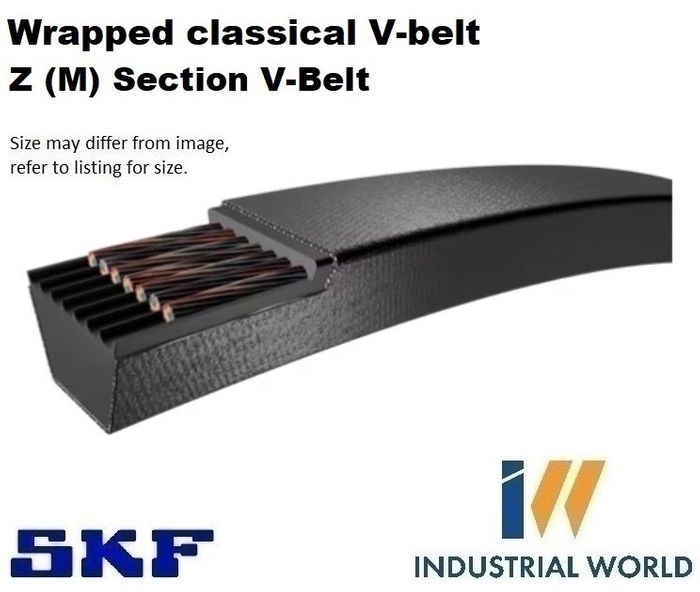

Wrapped classical V-belt

Belts provide a very efficient and cost-effective method for transmitting power from prime movers to driven machines. (Agricultural and industrial applications)

Classical V-belts have pre-tensioned polyester cords that provide low stretch during operation and a fibre-loaded rubber cushion that gives good transverse rigidity.

Being fully wrapped in a heavy duty industrial fabric, the belts have a high resistance against abrasion.

High flexibility
Low elongation during operation
Oil and heat resistant, with anti-static properties
Fully wrapped to resist abrasion
Reduced energy consumption and increased mean time between failures
Temperature range from –35 to +65 °C

Applications

SKF Wrapped Classical Belts have been developed to handle the majority of industrial
applications and some agricultural machines.

They can run on ISO wedge as well as on classical V-belt pulleys.
Suitable for V-flat drives (flying wheel applications).
Standards ISO 4184

Construction

Cushion rubber
Cushion rubber provides good adhesion between the tension members (cords) and
the rubber cushion.
Tension members
The tension cords are made from polyester
yarn. Pre-loading the cords during their
rubber impregnation process results in low
stretch during operation.
Rubber cushion
The rubber cushion is fibre loaded giving
good transverse belt rigidity
Wrapping fabric
Heavy duty industrial fabric.
