SKF - CARB Toroidal Roller Bearing Cyl Bore

50 x 72 x 40 (C 6910 V)
Stock Code:
C6910V_SKF
$190.97 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

C 6910 V

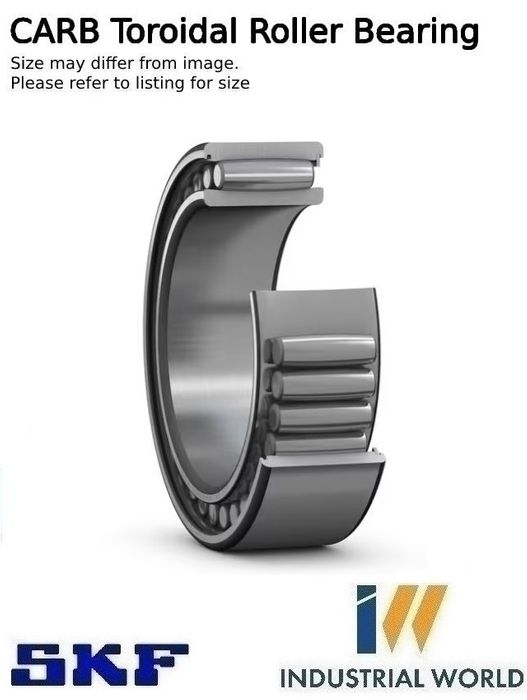

Full complement CARB toroidal roller bearing

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. This full complement bearing, which has a lower speed rating, uses as many rollers as possible, giving it the highest possible load rating.

  • Accommodate misalignment and axial displacement within the bearing
  • Very high radial load carrying capacity
  • Provide frictionless axial movement
  • Long bearing system life

Dimensions

Bore diameter50 mm
Outside diameter72 mm
Width40 mm

Performance

Basic dynamic load rating140 kN
Basic static load rating224 kN
Limiting speed2 400 r/min
SKF performance classSKF Explorer

Properties

Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageNone (full complement bearing)
Radial internal clearanceCN
Tolerance classNormal
SealingWithout
LubricantNone
Relubrication featureWithout

Logistics

Product net weight0.523 kg
eClass code23-05-09-13
UNSPSC code31171505

Click here for catalogue information

View product table

View product catalogue

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Chrome Steel
  • Width:
    40 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Cylindrical Bore
  • Size:
    6910
  • Diameter Outside:
    72 mm
  • Style:
    CARB Toroidal
