SKF - Lock Nut

109.86 x 145.39 x 20.09
Stock Code:
AN22_SKF
$104.16 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

AN 22

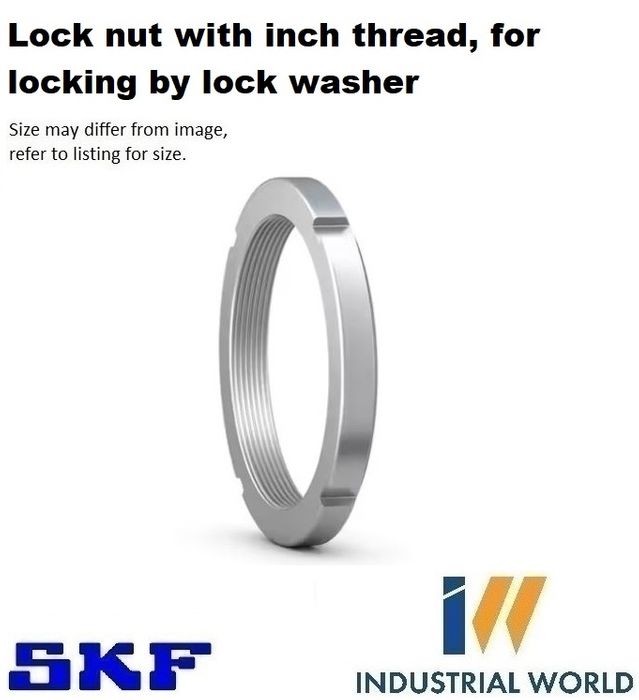

Lock nut with inch thread, for locking by lock washer

AN lock nuts are used to locate bearings onto a shaft. They have inch threads and four, equally spaced slots around their circumference to accommodate a spanner. They should be locked by a lock washer to prevent unintentional loosening. AN lock nuts can be reused, provided they are not damaged.

  • Simple, stable and reliable fastening element
  • Easy to install and remove
  • Reusable with a new locking device
  • Require a keyway in the shaft or adaptor sleeve thread

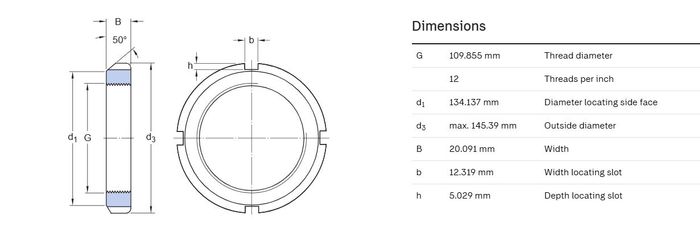

Dimensions

Thread designation4.325-12
Bore diameter109.855 mm
Outside diameter145.39 mm
Width20.091 mm

Properties

Locking deviceLock washer
Nut for hydraulic mountingNo
Associated mounting toolHN 21-22

Logistics

Product net weight0.978 kg
eClass code23-11-07-05
UNSPSC code31163218



Click here for catalogue information

View product table

View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    INCH 4.325-12
  • Material:
    Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Imperial
  • Style:
    Standard
