Sutton - Long Series Drill Bit

3/16 inch - ANSI B94-11 - HSS
Stock Code:
SUT-D1100476
$14.37 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    3 In Stock
3 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

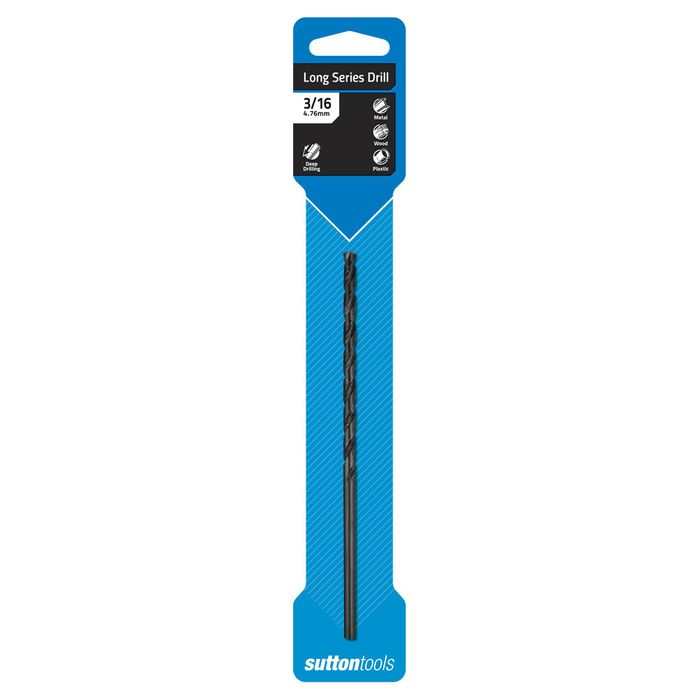

Sutton D1100476 3/16" Long Series Drill Bit - ANSI B94-11 - HSS

Sutton Tools Long Series Drill Bits - Blue Bullet

  • Sutton Tools Blue Bullet Long Series drills offer longer flute & overall length than standard drill bits
  • Ideal for drilling deeper holes

Features

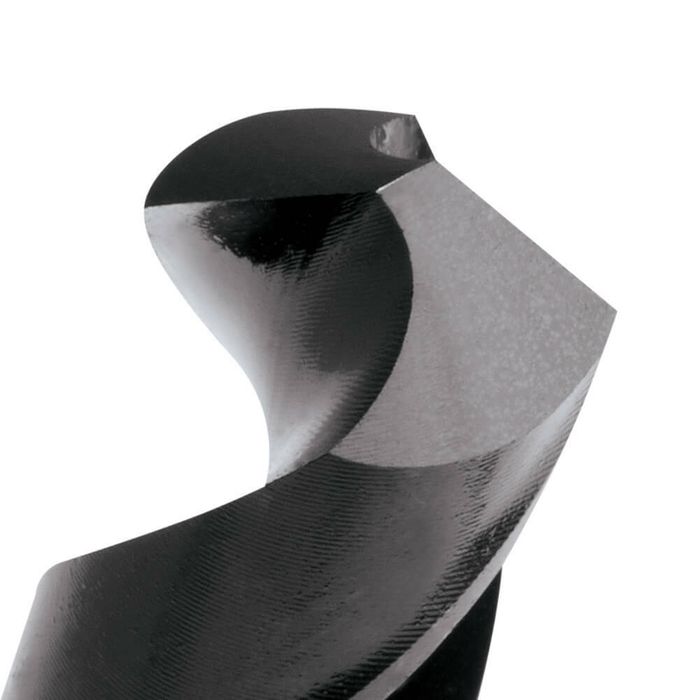

  • 118° standard point for general purpose applications
  • Precision ground flute designed for fast chip removal
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Blue
  • Maximum Cut Depth: 8XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Cutting Edges: ul
  • Standard: ANSI B94-11

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Suitable for DIY. Trade Automotive, Electrical, Plumbing, Carpentry, General Contracting, Woodworking, Metalworking, and Machine Shop

Specifications

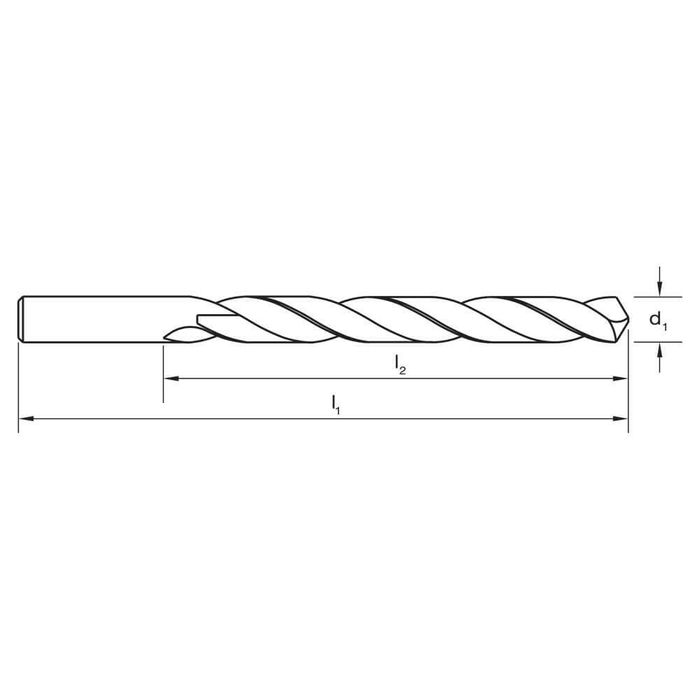

  • Thread Diameter (inch) 3/16
  • Overall Length (mm) 152
  • Flute Length (mm) 92
  • Thread Diameter 4.76 mm
  • Group Code D110
  • Type Long Drill Bit
  • System of Measurement ANSI B94-11,Imperial
  • Material High Speed Steel (HSS)
  • Finish Steam Oxide (Blue)
  • Helix Angle R30
  • Shank Form A
  • Point Angle 118
  • Point Form Form A
  • Maximum Cut Depth 8XD
  • Point Tolerance h8
