SKF - Cylindrical Roller Bearing

60 x 110 x 28 (NU 2212 ECJ/VS053)
Stock Code:
NU2212ECJ-VS053_SKF
$225.30 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

NU 2212 ECJ/VS053

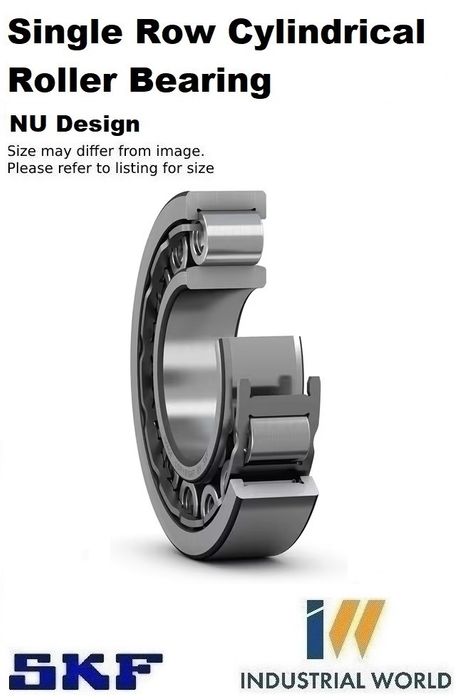

Single row cylindrical roller bearing, NU design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NU design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
DIMENSIONS
Bore diameter
60 mm
Outside diameter
110 mm
Width
28 mm
PERFORMANCE
Basic dynamic load rating
146 kN
Basic static load rating
153 kN
Reference speed
5600 r/min
Limiting speed
6700 r/min
PROPERTIES
Bearing part
Complete bearing
Axial displacement capability
In both directions
Number of rows
1
Locating feature, bearing outer ring
None
Bore type
Cylindrical
Cage
Sheet metal
Number of flanges, outer ring
2
Number of flanges, inner ring
0
Loose flange
None
Radial internal clearance
NSTD
Tolerance class
Normal
Coating
Without
Sealing
Without
Lubricant
None
Relubrication feature
Without
LOGISTICS
EAN code
07316572436417
Pack code
12
Products per pack
1
Collecting pack quantity
1
Products per pallet
246
Pack gross weight
1.13 kg
Pack length
124 mm
Pack height
126 mm
Pack width
39 mm
Pack volume
0.609 dm³
Product net weight
1.1 kg
eClass code
23-05-09-01
UNSPSC code
31171505

View product table

View product catalogue

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    60 mm
  • Width:
    28 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    Steel Cage
  • Size:
    2212
  • Diameter Outside:
    110 mm
  • Style:
    fixed Outer Ring (NU)
