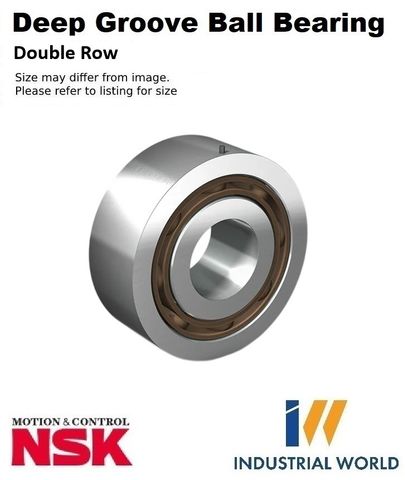

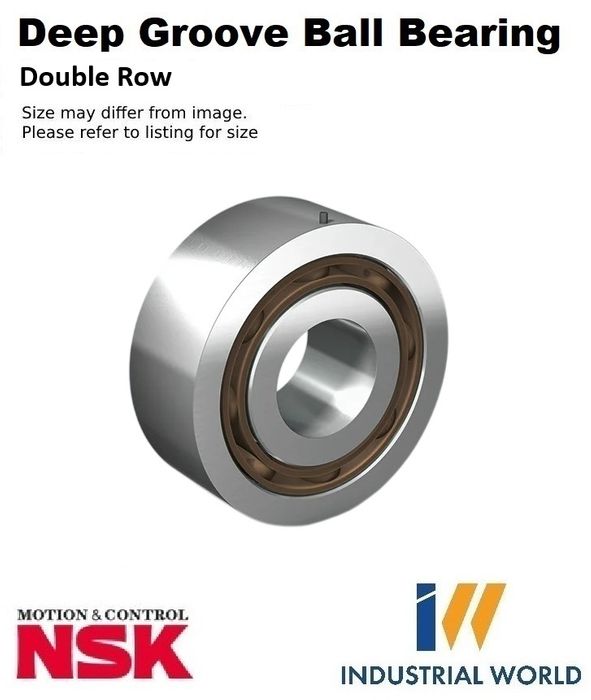

NSK - Double Row Deep Groove Ball Bearing

40 x 90 x 33 (4308)
Stock Code:
4308_NSK
$172.46 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

4308 NSK

Double row deep groove ball bearing

40.00 mm ID x 90.00 mm OD x 33.00 mm Width

NSK double row groove ball bearings are equipped with various characteristics, depending on individual customer requirements. Every solution is implemented with NSK’s garantee of quality - Whether it is the adaptation of a standard bearing or a completely new development of bearing.

Properties

  • Cylindrical Bore
  • Standard Clearance
  • Steel cage
  • Open

Condition Description

  • High Load
  • High Temperature

Industries

  • Power Transmission
  • Agriculture

Product Features

  • Correspond in design and function to a pair of single-row deep groove ball bearings
  • Excellent properties at higher temperatures
  • Low noise
  • Cage can be produced in special materials
  • Heavy-duty spring pin to prevent rotation in gearbox housings possible

Benefits

  • Higher load rating compared to single-row deep groove ball bearings
  • Other bearing variants available on request: Outer and inner ring: diameter, width, threads etc.
  • Contour options: crowned, gothic etc.
  • Special seals
  • Higher load rating compared to single-row deep groove ball bearings



Specifications

Item Type DEEP GROOVE BALL BEARING
Metric/Inch Metric
Material Steel
Bore Type Cylindrical
ID: Metric 40.000
ID: Inch 1.575
OD: Metric 90.000
OD: Inch 3.543
Width: mm 33.000
Width: Inch 1.299
Seal Type Open
Cage Steel
Clearance Standard
Bearing Type Deep Groove Ball Bearings
BRG Row Double Row
Filling Slot Non Filling Slot
Unit Of Measure EA

Click here for catalogue information

Click here for double row deep groove ball bearings

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    40 mm
  • Material:
    Chrome steel
  • Width:
    33 mm
  • Brand:
    NSK
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Open
  • Diameter Outside:
    90 mm
  • Style:
    Standard
