SKF - Metric Lock with integral locking device

( M17 X 1 )
Stock Code:
KMK3_SKF
$70.83 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

KMK 3

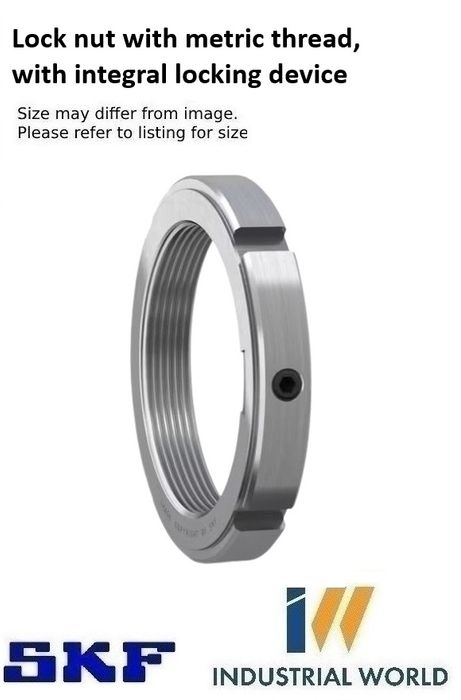

Lock nut with metric thread, with integral locking device

KMK lock nuts with integral locking are designed to locate radial bearings in less demanding applications. They reduce the cost of the shaft as no keyway is required. Installation with an integral set screw is quick and easy and no separate locking device is necessary. KMK lock nuts have a threaded steel insert in their bore that acts as a pressure plate when a set screw, which runs through the body of the lock nut, is tightened.

  • No keyway required
  • Simple and robust locking for intended applications
  • Reusable
  • Cost-effective
  • Available for thread M 10x0.75 to M 100x2 (sizes 0 to 20)

Dimensions

Thread designationM 17x1
Bore diameter17 mm
Outside diameter28 mm
Width9 mm

Properties

Locking deviceIncorporated in the lock nut
Nut for hydraulic mountingNo
Associated mounting toolHN 2-3

Logistics

Product net weight0.027 kg
eClass code23-11-07-05
UNSPSC code31163218



Click here for catalogue information

View product table

Click here for product catalogue PDF

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    M17x1
  • Material:
    Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Style:
    Grub Screw Lock
