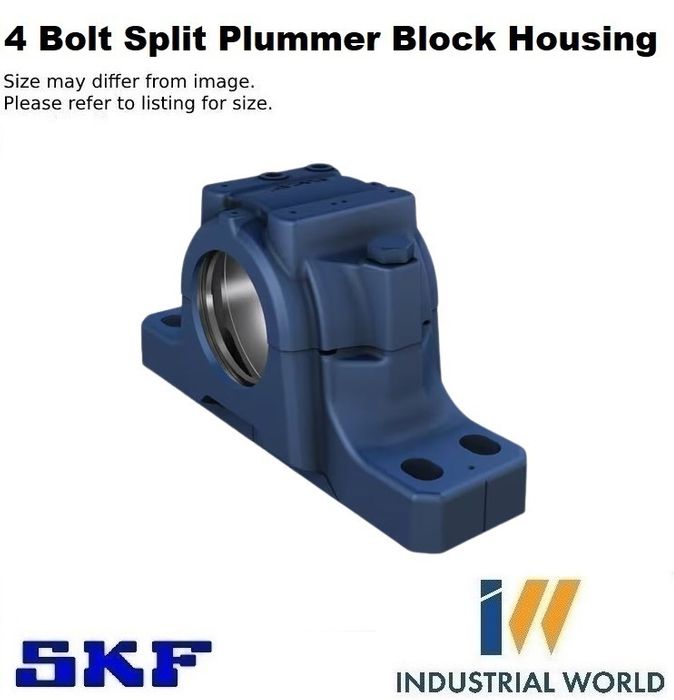

SKF - 4 Bolt Split Plummer Block Housing

Cast Iron
Stock Code:
FSNL513-611_SKF
$241.42 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

FSNL 513-611
Split plummer (pillow) block housing, SNL 2, 3, 5 and 6 series

SNL plummer (pillow) block housings are the most popular SKF bearing housings on the market, developed to be the first choice for design, quality and economy. They enable the incorporated bearings to achieve maximum service life with less need for maintenance. Different housing variants and seal designs are available, making the use of tailored housings virtually unnecessary and enabling cost-effective bearing arrangements to be made.

  • Easy to install
  • Cost-effective bearing arrangement
  • Reduce maintenance
  • Minimize lubricant leakage

Dimensions

Diameter of bearing seat120 mm
Width of bearing seat51 mm
Centre height (pillow block)80 mm
Centre distance between bolt holes230 mm
Centre distance between bolt holes (axial direction)40 mm
Attachment bolt diameter12 mm

Properties

Housing typePlummer/pillow block
Housing configurationTwo-piece
Mounting arrangementThrough shaft/Shaft end
Number of bolt holes for fasteners4
Material, housingCast iron
Bearing housing seal typeWithout
Housing lubrication feature/possibilityGrease

Logistics

Product net weight6.96 kg
eClass code23-05-17-01
UNSPSC code31171519

Click here for catalogue information

View product table


Click here for product catalogue

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Material:
    Cast Iron
  • Brand:
    SKF
