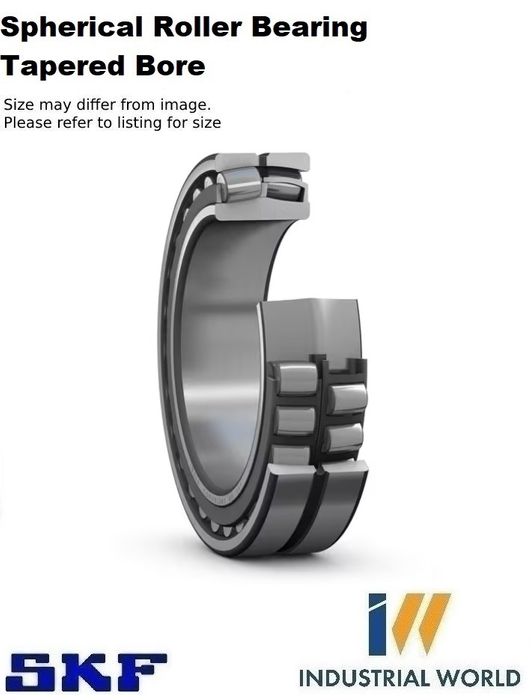

SKF - Spherical Roller Bearing Tapered Bore

190 x 340 x 92 (22238 CCK/W33)
Stock Code:
22238CCK-W33_SKF
$2,083.28 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

22238 CCK/W33
Spherical roller bearing with tapered bore and relubrication features

Dealing with very heavy radial and axial loads in applications prone to misalignment or shaft deflections? Meet the challenge with spherical roller bearings, whose high load carrying capacity and ability to accommodate misalignment help you obtain low maintenance costs and long bearing service life.

A spherical roller bearing is a rolling-element bearing that consists of a floating spherical guide ring, and self correction rollers around an inner ring. Due to its design, this allows rotation with low friction, and permits angular misalignment.

SKF invented this bearing type in 1919, and their range is the widest in the industry today – both open and sealed. Our catalog includes spherical roller bearings designed for many applications such as:
• Wind turbine main shafts
• Continuous casters
• Vibratory applications
• High-speed applications

Dimensions

Bore diameter190 mm
Outside diameter340 mm
Width92 mm

Performance

Basic dynamic load rating1 342 kN
Basic static load rating1 700 kN
Reference speed1 700 r/min
Limiting speed2 400 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeTapered 1:12
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes

Logistics

Product net weight34.5 kg
eClass code23-05-09-11
UNSPSC code31171510



Click here for catalogue information

View product table

View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    190 mm
  • Material:
    Chrome Steel
  • Width:
    92 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Taper Bore (K)
  • Size:
    22238
  • Diameter Outside:
    340 mm
