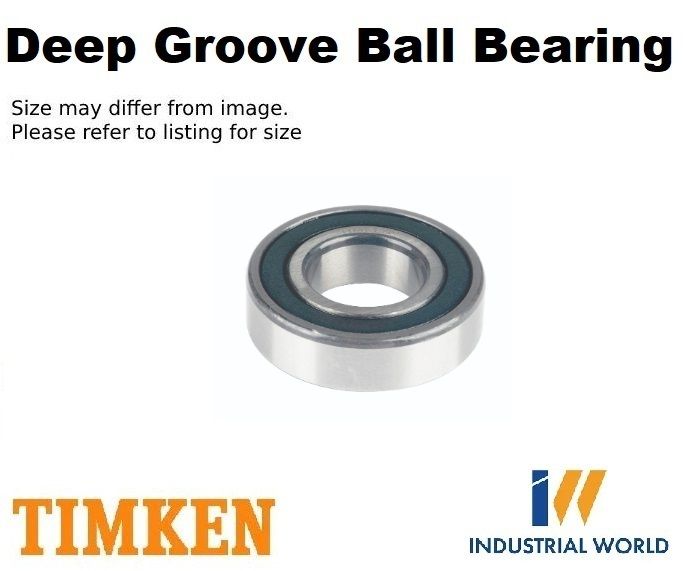

Timken - Deep Groove Ball Bearing

55 x 120 x 29
Stock Code:
6311-2RS-C3_TIMKEN
$109.99 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

6311-2RS-C3 TIMKEN

Timken’s deep groove ball bearings deliver reliable performance in a wide range of applications and conditions. With super-finished raceways and controlled geometries, our premium design helps ensure consistent quality.

Specifications

  • Clearance C3
  • Bore Size d 55 mm
  • Features Contact Seals
  • Bearing Type Standard DGBB

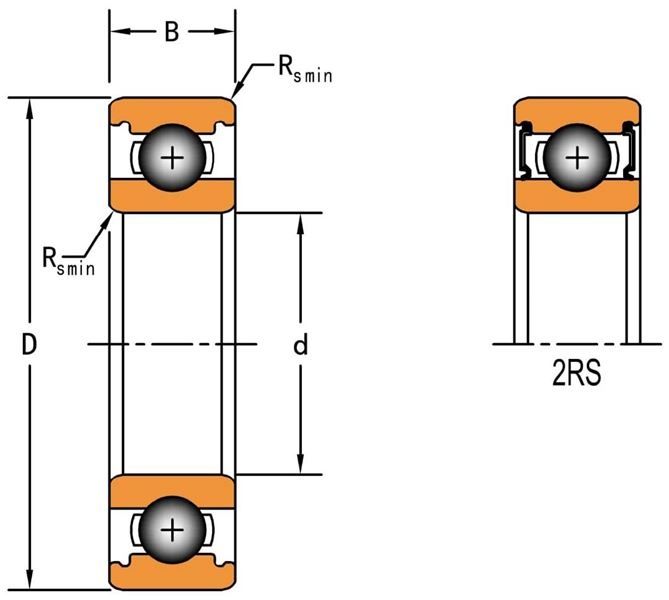

Dimensions

  • Outside Diameter D 120 mm
  • Outside Ring Width B 29 mm
  • Radius Rs min 2 mm

Basic Load Ratings

  • Cr - Dynamic Load Rating 71500 N
  • C0r - Static Load Rating 44600 N

Factors

  • Grease Reference Speed 6700 rpm
  • Oil Reference Speed 10000 rpm
Timken

Click here for catalogue information

Click here for deep groove information

View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    55 mm
  • Material:
    Chrome steel
  • Width:
    29 mm
  • Brand:
    TIMKEN
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    2RS - Rubber Seal - Both Sides
  • Diameter Outside:
    120 mm
  • Style:
    Standard
