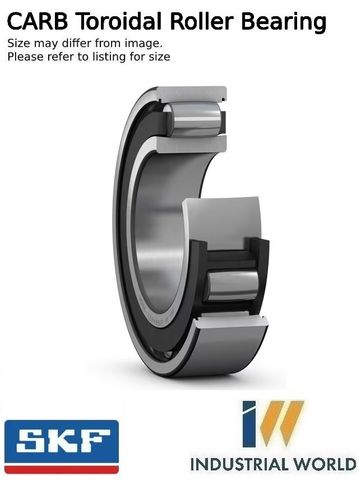

SKF - CARB Toroidal Roller Bearing Tapered Bore

65 x 120 x 31

Stock Code:

C2213K-TN9_SKF

$483.65 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

C 2213 KTN9
CARB toroidal roller bearing with tapered bore (1:12)

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.

Accommodate misalignment and axial displacement within the bearing
High radial load carrying capacity
Provide frictionless axial movement
Long bearing system life
Reduce noise and vibration levels

Dimensions

Bore diameter	65 mm
Outside diameter	120 mm
Width	31 mm

Performance

Basic dynamic load rating	180 kN
Basic static load rating	180 kN
Reference speed	5 300 r/min
Limiting speed	7 500 r/min
SKF performance class	SKF Explorer

Properties

Number of rows	1
Locating feature, bearing outer ring	Without
Bore type	Tapered 1:12
Cage	Non-metallic
Radial internal clearance	CN
Tolerance class	Normal
Sealing	Without
Lubricant	None
Relubrication feature	Without
Indicative carbon footprint for new product	4.85 kg CO₂e
