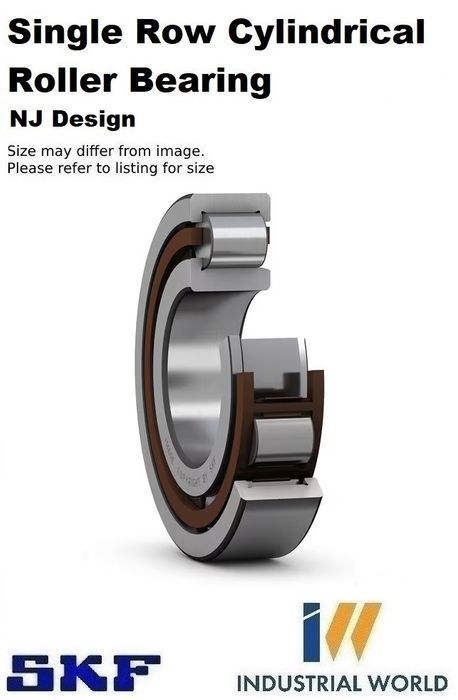

SKF - Cylindrical Roller Bearing Polymer Cage

95 x 170 x 43 (NJ 2219 ECP)
Stock Code:
NJ2219ECP_SKF
$578.91 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

NJ 2219 ECP
Single row cylindrical roller bearing, NJ design

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJ design bearings can accommodate axial displacement in one direction. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in one direction
  • Separable design

Dimensions

Bore diameter95 mm
Outside diameter170 mm
Width43 mm

Performance

Basic dynamic load rating325 kN
Basic static load rating375 kN
Reference speed4 300 r/min
Limiting speed4 800 r/min
SKF performance classSKF Explorer

Properties

Bearing partComplete bearing
Axial displacement capabilityIn one direction
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageNon-metallic
Number of flanges, outer ring2
Number of flanges, inner ring1
Loose flangeNone
Radial internal clearanceCN
Tolerance classNormal
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Indicative carbon footprint for new product13.8 kg CO2e

Logistics

Product net weight3.85 kg
eClass code23-05-09-01
UNSPSC code31171505



Click here for catalogue information

View product table


Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    95 mm
  • Material:
    Chrome Steel
  • Width:
    43 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Type:
    Polymide cage
  • Size:
    2219
  • Diameter Outside:
    170 mm
  • Style:
    Fixed Outer Ring - 1 Flange Inner (NJ)
