SKF - Angular Contact Ball Bearing Non Metal Cage

95 X 170 X 32 (Universal Match)
Stock Code:
7219BECBP_SKF
$363.34 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

7219 BECBP

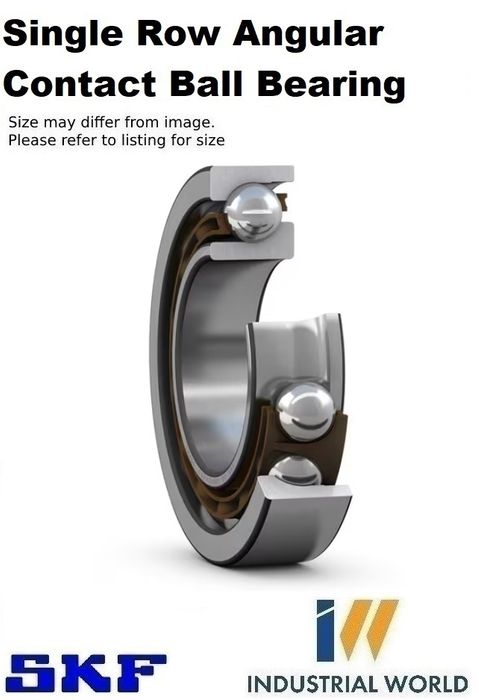

Single row angular contact ball bearing

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads

Dimensions

Bore diameter95 mm
Outside diameter170 mm
Width32 mm
Contact angle40 °

Performance

Basic dynamic load rating129 kN
Basic static load rating118 kN
Reference speed4 500 r/min
Limiting speed4 800 r/min
SKF performance classSKF Explorer

Properties

Contact typeNormal contact (two-point contact)
Number of rows1
Locating feature, bearing outer ringWithout
Ring typeOne-piece inner and outer rings
CageNon-metallic
Matched arrangementNo
Universal matching bearingYes
Axial internal clearanceNot applicable
Matched condition (axial clearance/ preload)Axial clearance CB
Tolerance classClass 6 (P6)
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Indicative carbon footprint for new product9.7 kg CO2e

Logistics

Product net weight2.68 kg
eClass code23-05-08-03
UNSPSC code31171531

Click here for catalogue information

View product table

View product guide


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    95 mm
  • Width:
    32 mm
  • Brand:
    SKF
  • Metric/Imperial:
    METRIC
  • Type:
    Polymer Cage
  • Size:
    7219
  • Diameter Outside:
    170 mm
  • Style:
    Univeral Matching
