Conversion Chart

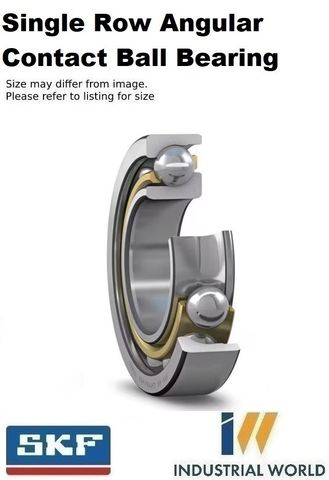

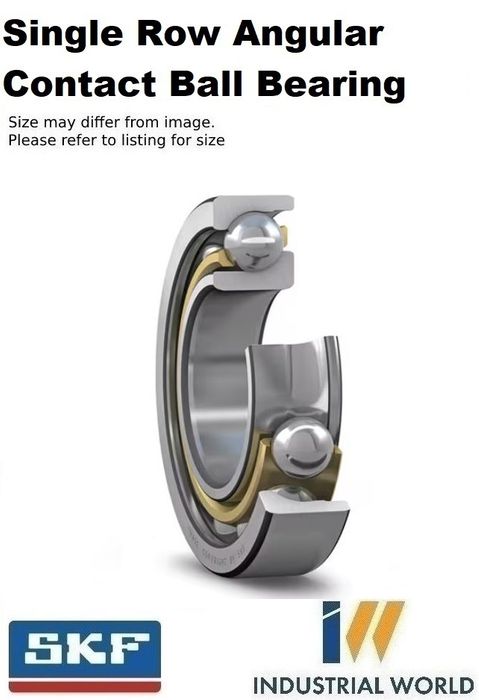

SKF - Angular Contact Bearing Brass Cage

150 x 320 x 65 Universal Matching (7330 BCBM)
Stock Code:
7330BCBM_SKF
$2,872.95 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

7330 BCBM
Single row angular contact ball bearing

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads

Dimensions

Bore diameter150 mm
Outside diameter320 mm
Width65 mm
Contact angle40 °

Performance

Basic dynamic load rating332 kN
Basic static load rating390 kN
Reference speed2 600 r/min
Limiting speed3 000 r/min

Properties

Contact typeNormal contact (two-point contact)
Number of rows1
Locating feature, bearing outer ringWithout
Ring typeOne-piece inner and outer rings
CageMachined brass
Matched arrangementNo
Universal matching bearingYes
Axial internal clearanceNot applicable
Matched condition (axial clearance/ preload)Axial clearance CB
Tolerance classClass 6 (P6)
Material, bearingBearing steel
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Indicative carbon footprint for new product86.8 kg CO2e

Logistics

Product net weight24.1 kg
eClass code23-05-08-03
UNSPSC code31171531

Click here for catalogue information

View product table

View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    150 mm
  • Width:
    65 mm
  • Brand:
    SKF
  • Metric/Imperial:
    METRIC
  • Type:
    Brass Cage
  • Size:
    7330
  • Diameter Outside:
    320 mm
  • Style:
    Univeral Matching
