SKF - Deep Groove Ball Bearing - Low Friction Seal

12 x 32 x 10 (6201-2RSL/C2ELHT23) Lithium Grease
Stock Code:
6201-2RSL-C2/ELHT23_SKF
$11.88 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    6 In Stock
Make an Enquiry
Add to Favourites

Description

6201-2RSL/C2ELHT23

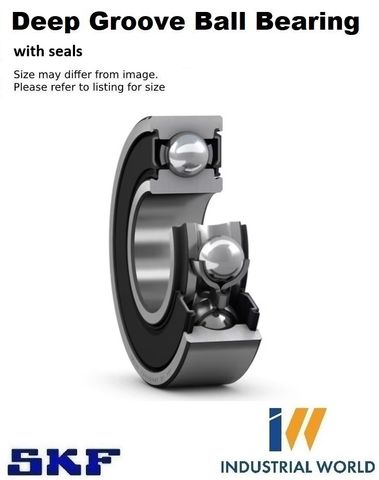

Deep groove ball bearing with seals

Single row deep groove ball bearings with seals on one or both sides are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.

  • Integral sealing prolongs bearing service life
  • Simple, versatile and robust design
  • Low friction and high-speed capability
  • Accommodate radial and axial loads in both directions
  • Require little maintenance
DIMENSIONS
Bore diameter
12mm
Outside diameter
32mm
Width
10mm
PERFORMANCE
Basic dynamic load rating
7.28kN
Basic static load rating
3.1kN
Reference speed
50000r/min
Limiting speed
26000r/min
SKF performance class
SKF Explorer
PROPERTIES
Filling slots
Without
Number of rows
1
Locating feature, bearing outer ring
Without
Bore type
Cylindrical
Cage
Sheet metal
Matched arrangement
No
Radial internal clearance
NSTD
Material, bearing
Bearing steel
Coating
Without
Sealing
Seal on both sides
Sealing type
Low-friction
Lubricant
Grease
Relubrication feature
Without
Indicative carbon footprint for new product
0.13kg CO2e
LOGISTICS
EAN code
07316571845166
Pack code
12
Products per pack
1
Collecting pack quantity
10
Products per pallet
3800
Pack gross weight
0.0389kg
Pack length
45mm
Pack height
47mm
Pack width
17mm
Pack volume
0.04dm³
Product net weight
0.0365kg
eClass code
23-05-08-01
UNSPSC code
31171504

Click here to view product table

Click here for product catalogue

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:

online@iw.net.au

Details

  • Bore Size:
    12 mm
  • Material:
    Chrome steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C2 Clearance
  • Style:
    Low Temp Grease
