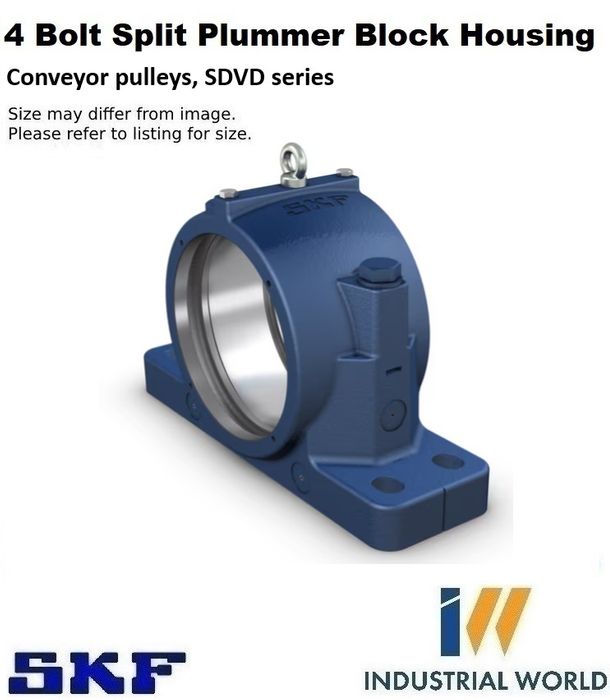

SKF - 4 Bolt Split Plummer Block Housing

SDVD Series - To Suit 230mm Brg OD

Stock Code:

SDVD526_SKF

$676.81 incl GST

Stock Locations

Ballarat:

Special Order
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

SDVD 526
Split plummer block housings for conveyor pulleys, SDVD series

SDVD housings have been designed for the demands of conveyor pulleys in the mining industry, where taconite seals are required for excluding contaminants. They accommodate bolt-on seals (TKV series) and end covers simplifying in-situ bearing replacements. On delivery, relubrication holes are plugged and grease fittings are included.

Minimized assembly width
Maximum service life for the incorporated bearing
Interface dimensions compatible with market standards (ISO 113)
Threaded holes to connect condition monitoring sensors as standard
Bolt-on seals and end covers enable in-situ bearing replacements

Dimensions

Diameter of bearing seat	230 mm
Width of bearing seat	90 mm
Centre height (pillow block)	150 mm
Centre distance between bolt holes	380 mm
Centre distance between bolt holes (axial direction)	70 mm
Attachment bolt diameter	20 mm

Properties

Housing type	Plummer/pillow block
Housing configuration	Two-piece
Mounting arrangement	Through shaft/Shaft end
Number of bolt holes for fasteners	4
Material, housing	Spheroidal graphite cast iron
Bearing housing seal type	Without
Housing lubrication feature/possibility	Grease
