SKF - Spherical Roller Bearing Cylindrical Bore

120 x 180 x 46 (23024-2RS5/VT143)
Stock Code:
23024-2RS5-VT143_SKF
$782.27 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

23024-2RS5/VT143

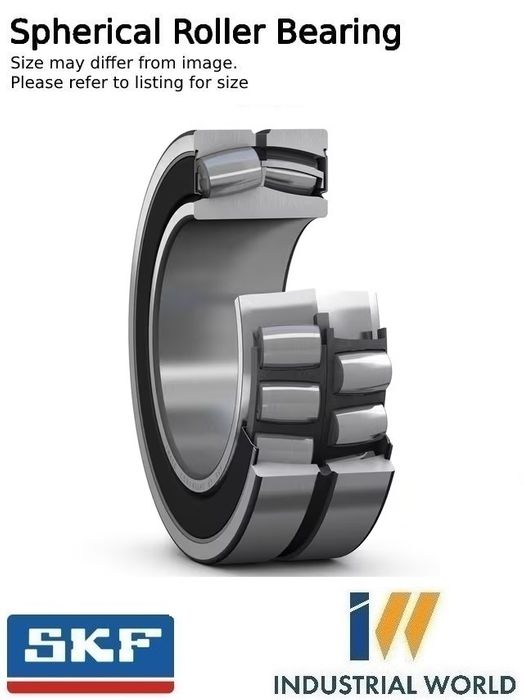

Spherical roller bearing with integral sealing and relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.

  • Accommodate misalignment up to 0.5 degree
  • High load carrying capacity
  • Sealed for increased reliability, with relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter120 mm
Outside diameter180 mm
Width46 mm

Performance

Basic dynamic load rating367 kN
Basic static load rating500 kN
Limiting speed1 400 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceCN
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWith
Candidate for remanufacturingYes
Indicative carbon footprint for new product14 kg CO2e
Indicative carbon footprint for remanufactured product4.9 kg CO2e

Logistics

Product net weight3.89 kg
eClass code23-05-09-11
UNSPSC code31171510

Click here for catalogue information

View product table

View product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    120 mm
  • Material:
    Chrome Steel
  • Width:
    46 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Cylindrical Bore
  • Size:
    23024
  • Diameter Outside:
    180 mm
  • Style:
    Sealed Spherical Roller
