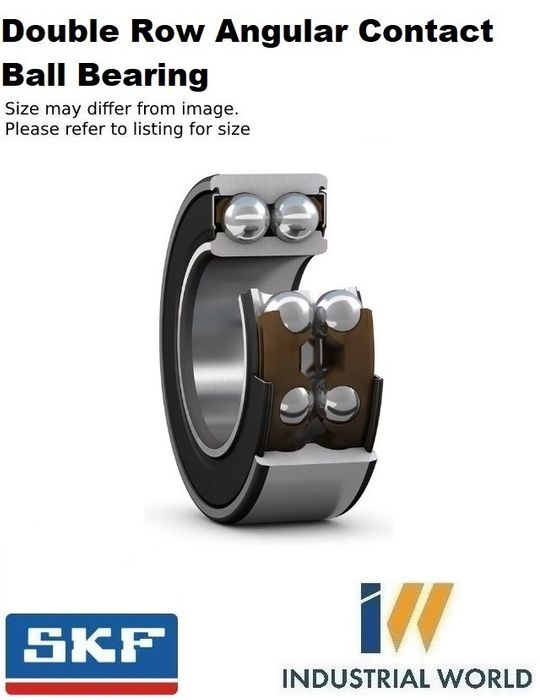

SKF - Double Row Angular Contact Ball Bearing

25 X 62 X 25.4 Sheet Metal Cage
Stock Code:
3305-A-2RS1-TN9/C3MT33_SKF
$91.91 incl GST

Stock Locations

  • Ballarat:
    10 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

3305 A-2RS1TN9/C3MT33
Double row angular contact ball bearing with seals or shields

Double row angular contact ball bearings, with seals or shields, correspond to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space. Depending on the sealing execution, they can operate at high speeds and are more suitable than deep groove ball bearings for supporting large axial forces in both directions.

  • High-speed capability
  • Accommodate relatively high radial loads, high axial loads in both directions and tilting moments
  • Suitable where a stiff bearing arrangement is required
  • Require less axial space than equivalent pair of single row angular contact ball bearings
  • Integral sealing prolongs bearing service life

Dimensions

Bore diameter25 mm
Outside diameter62 mm
Width25.4 mm
Contact angle30 °

Performance

Basic dynamic load rating32.5 kN
Basic static load rating22 kN
Limiting speed7 500 r/min
SKF performance classSKF Explorer

Properties

Contact typeNormal contact (two-point contact)
Number of rows2
Locating feature, bearing outer ringWithout
Ring typeOne-piece inner and outer rings
CageSheet metal
Arrangement of contact angle (double-row bearing)Back-to-back (O)
Matched arrangementNo
Universal matching bearingNo
Axial internal clearanceC3
Material, bearingBearing steel
CoatingWithout
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWithout
Indicative carbon footprint for new product1.3 kg CO2e

Logistics

Product net weight0.35 kg
eClass code23-05-08-03
UNSPSC code31171531




Click here for catalogue information

View product table

View product guide


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    25 mm
  • Material:
    Chrome Steel
  • Width:
    25.4 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Standard
  • Size:
    3305
  • Diameter Outside:
    62 mm
  • Style:
    Polyamide Cage
