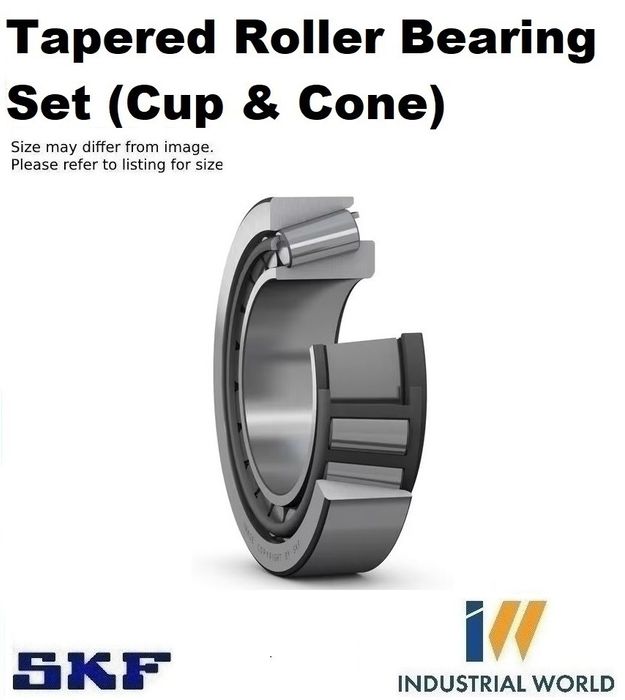

SKF - Metric Tapered Roller Bearing Set

85 x 180 x 63.5 mm (Cup & Cone Set) 20 Deg Angle
Stock Code:
32317B_SKF
$714.48 incl GST

Stock Locations

  • Ballarat:
    Special Order
Make an Enquiry
Add to Favourites

Description

32317 B
Single row tapered roller bearing

Single row tapered roller bearings are designed to accommodate combined radial and axial loads and provide low friction during operation. The inner ring, with rollers and cage, can be mounted separately from the outer ring. These separable and interchangeable components facilitate mounting, dismounting and maintenance. By mounting one single row tapered roller bearing against another and applying a preload, a rigid bearing application can be achieved.

  • High radial and axial load carrying capacity
  • Accommodate axial loads in one direction
  • Low friction and long service life
  • Separable and interchangeable components

Dimensions

Bore diameter85 mm
Outside diameter180 mm
Width, total63.5 mm
Width, inner ring60 mm
Width, outer ring49 mm
Contact angle20 °

Performance

Basic dynamic load rating417 kN
Basic static load rating560 kN
Reference speed2 600 r/min
Limiting speed3 600 r/min

Properties

Bearing partComplete bearing
Number of rows1
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Arrangement of contact angle (double-row bearing)Not applicable
Matched arrangementNo
CoatingWithout
SealingWithout
LubricantNone
Relubrication featureWithout
Unit systemMetric
Indicative carbon footprint for new product26.5 kg CO2e

Logistics

Product net weight7.35 kg
eClass code23-05-09-10
UNSPSC code31171516



Click here for catalogue information

Click here for SKF product table

Click here for SKF Tapered roller bearings guide

Click here for SKF Tapered roller bearings product listing (Metric & Inch)

Click here for tapered roller bearing metric guide chart


Details

  • Bore Size:
    85 mm
  • Material:
    Chrome Steel
  • Width:
    63.5 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    323
  • Type:
    Set (Cup & Cone)
  • Diameter Outside:
    180 mm
