Conversion Chart

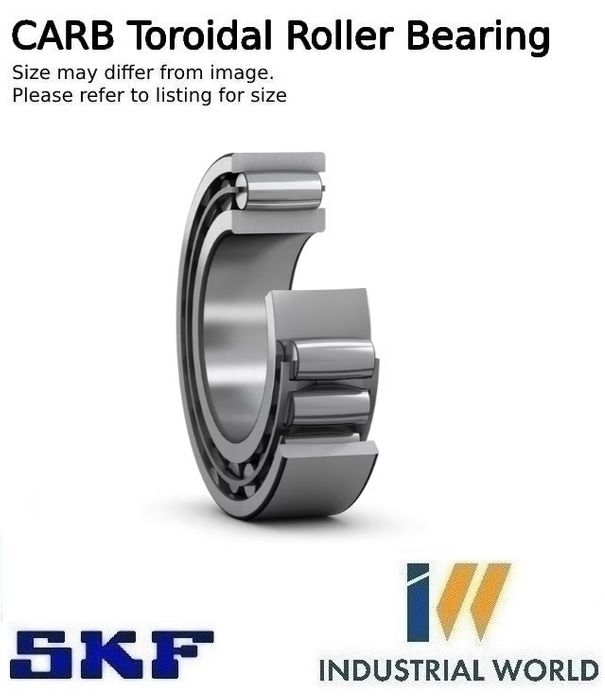

SKF - CARB Toroidal Roller Bearing Tapered Bore

130 x 230 x 64 (C 2226 K/C3)
Stock Code:
C2226K-C3_SKF
$1,323.11 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

C 2226 K/C3
CARB toroidal roller bearing with tapered bore (1:12)

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.

  • Accommodate misalignment and axial displacement within the bearing
  • High radial load carrying capacity
  • Provide frictionless axial movement
  • Long bearing system life
  • Reduce noise and vibration levels

Dimensions

Bore diameter130 mm
Outside diameter230 mm
Width64 mm

Performance

Basic dynamic load rating735 kN
Basic static load rating930 kN
Reference speed2 800 r/min
Limiting speed3 800 r/min
SKF performance classSKF Explorer

Properties

Number of rows1
Locating feature, bearing outer ringWithout
Bore typeTapered 1:12
CageSheet metal
Radial internal clearanceC3
Tolerance classNormal
SealingWithout
LubricantNone
Relubrication featureWithout
Candidate for remanufacturingYes
Indicative carbon footprint for new product39.2 kg CO2e
Indicative carbon footprint for remanufactured product13.7 kg CO2e

Logistics

Product net weight10.9 kg
eClass code23-05-09-13
UNSPSC code31171505

Click here for catalogue information

View product table

View product catalogue

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    130 mm
  • Material:
    Chrome Steel
  • Width:
    64 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Taper Bore (K)
  • Size:
    22226
  • Diameter Outside:
    230 mm
  • Style:
    CARB Toroidal
