SKF - Spherical Roller Bearing Cylindrical Bore

150 x 225 x 75
Stock Code:
24020CC-W33-C3_SKF
$588.71 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

24020 CC/C3W33

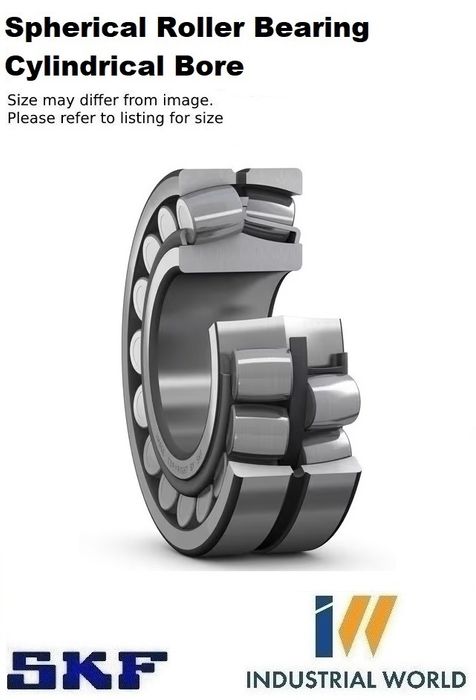

Spherical roller bearing with relubrication features

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.

  • Accommodate misalignment
  • High load carrying capacity
  • Relubrication features
  • Low friction and long service life
  • Increased wear resistance

Dimensions

Bore diameter100 mm
Outside diameter150 mm
Width50 mm

Performance

Basic dynamic load rating296 kN
Basic static load rating415 kN
Reference speed2 800 r/min
Limiting speed4 000 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceC3
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingWithout
LubricantNone
Relubrication featureWith
Candidate for remanufacturingYes
Indicative carbon footprint for new product10.6 kg CO2e
Indicative carbon footprint for remanufactured product3.7 kg CO2e

Logistics

Product net weight2.94 kg
eClass code23-05-09-11
UNSPSC code31171510



Click here for catalogue information

View product table

Click here for product guide

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    150 mm
  • Material:
    Chrome Steel
  • Width:
    75 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C3 Clearance
  • Type:
    Cylindrical Bore
  • Size:
    24020
  • Diameter Outside:
    225 mm
